Spacer clip 732 A2
Item no. 1362640 | EAN 4012196609444
- Product description
-

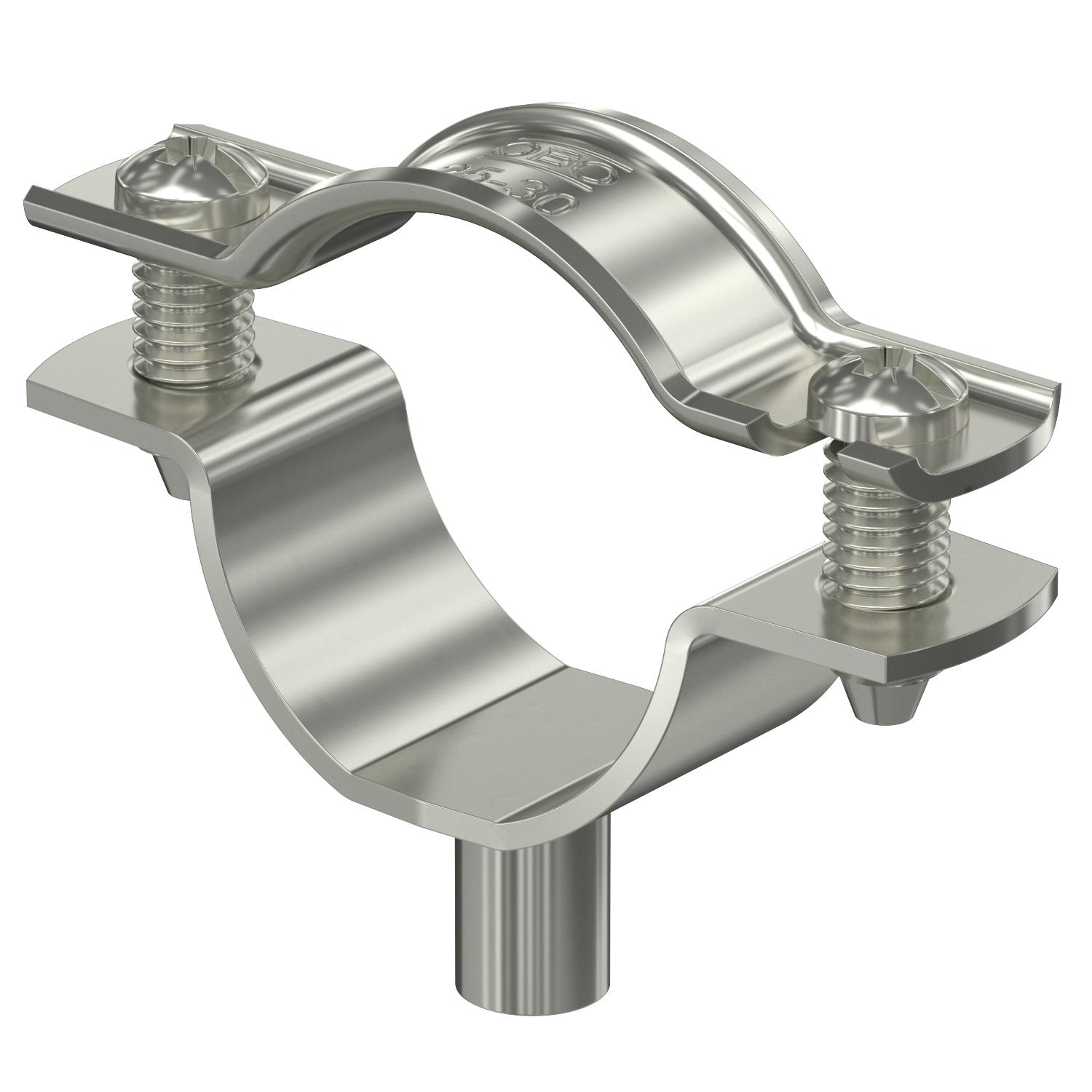

Product descriptionSpacer clip for the installation of pipes and cables on walls, ceiling and floors. With self-locking upper part. Surfaces G and FT from a clip size of 20 are suitable for installation with a nail device or a bolt-firing tool.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90.
-
- Technical data
-
Technical data

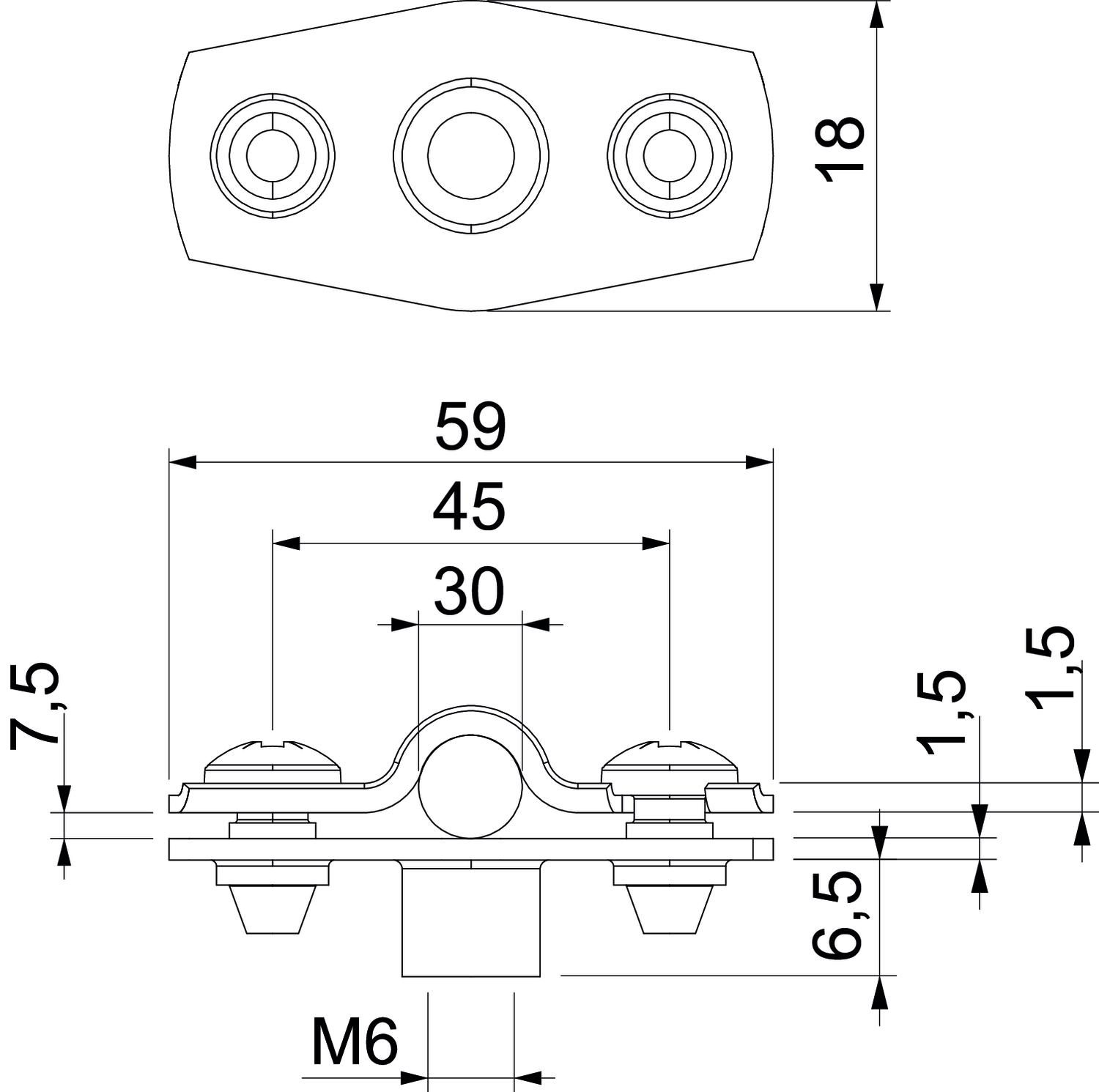

Clamping range D, max. 30 mm Clamping range D, min. 25 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,278 kg CO₂e / 1 Piece Dimension 25-30mm Dimension A 59 mm Dimension B 45 mm Dimension b 18 mm Dimension D 30 mm Dimension d max. 30 mm Dimension d min. 25 mm Dimension H1 12 mm Dimension t1 (mm) 1,5 Dimension t2 (mm) 1,5 Dimension x 7,5 mm Distance to the wall yes For diameter 25 - 30 Halogen-free yes Material Stainless steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASG 732 30 A2 / 1362640 , 0.26MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity ASG 732 30 A2 / 1362640 , 0.13MB , pdfREACH Declaration of conformity ASG 732 30 A2 / 1362640 , 0.12MB , pdfRoHS Declaration of conformity ASG 732 30 A2 / 1362640 , 0.12MB , pdf
