Spacer clip 732 A4
Item no. 1362478 | EAN 4012196599837
- Product description
-
Product description

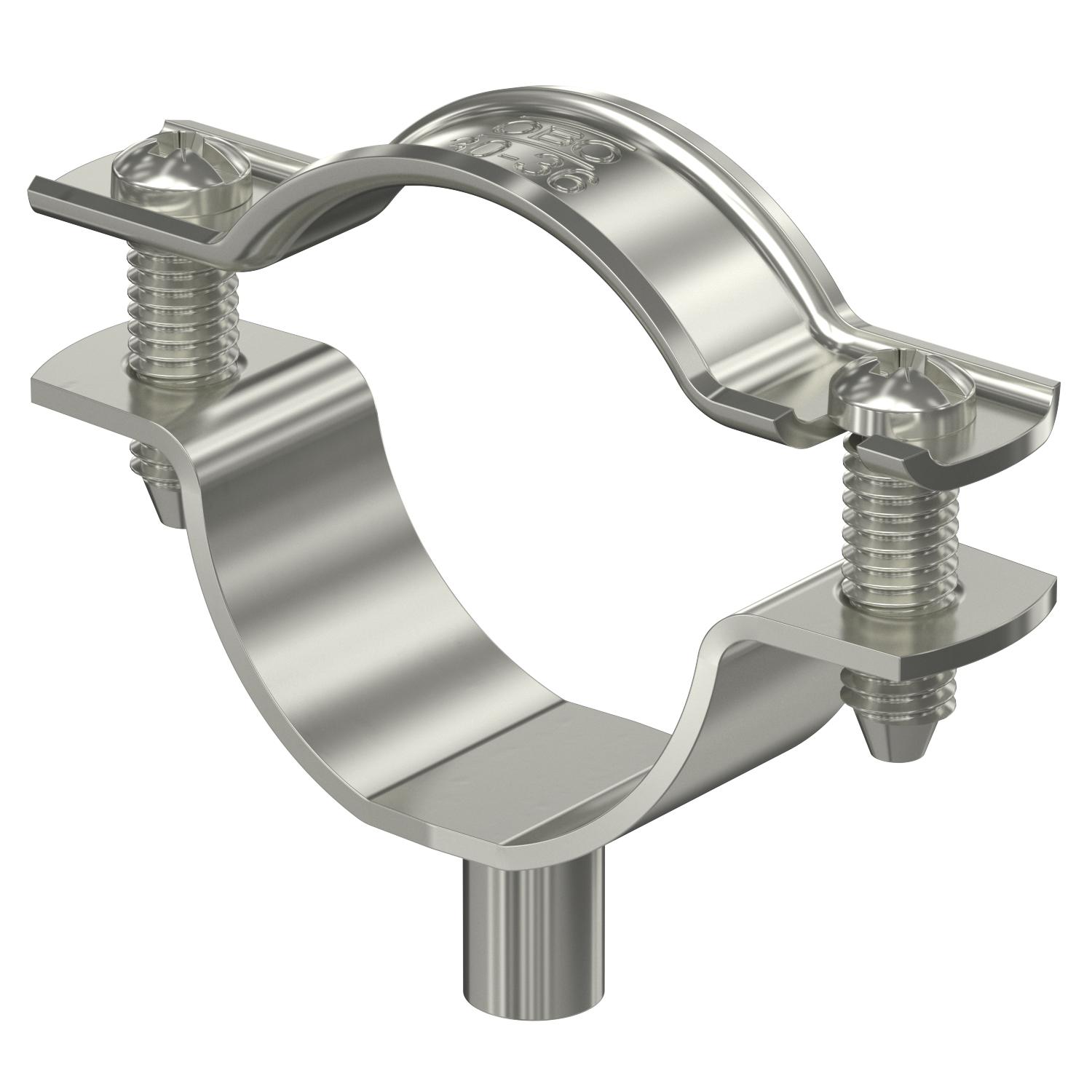

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via attachment piece with internal thread.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
-
- Technical data
-
Technical data

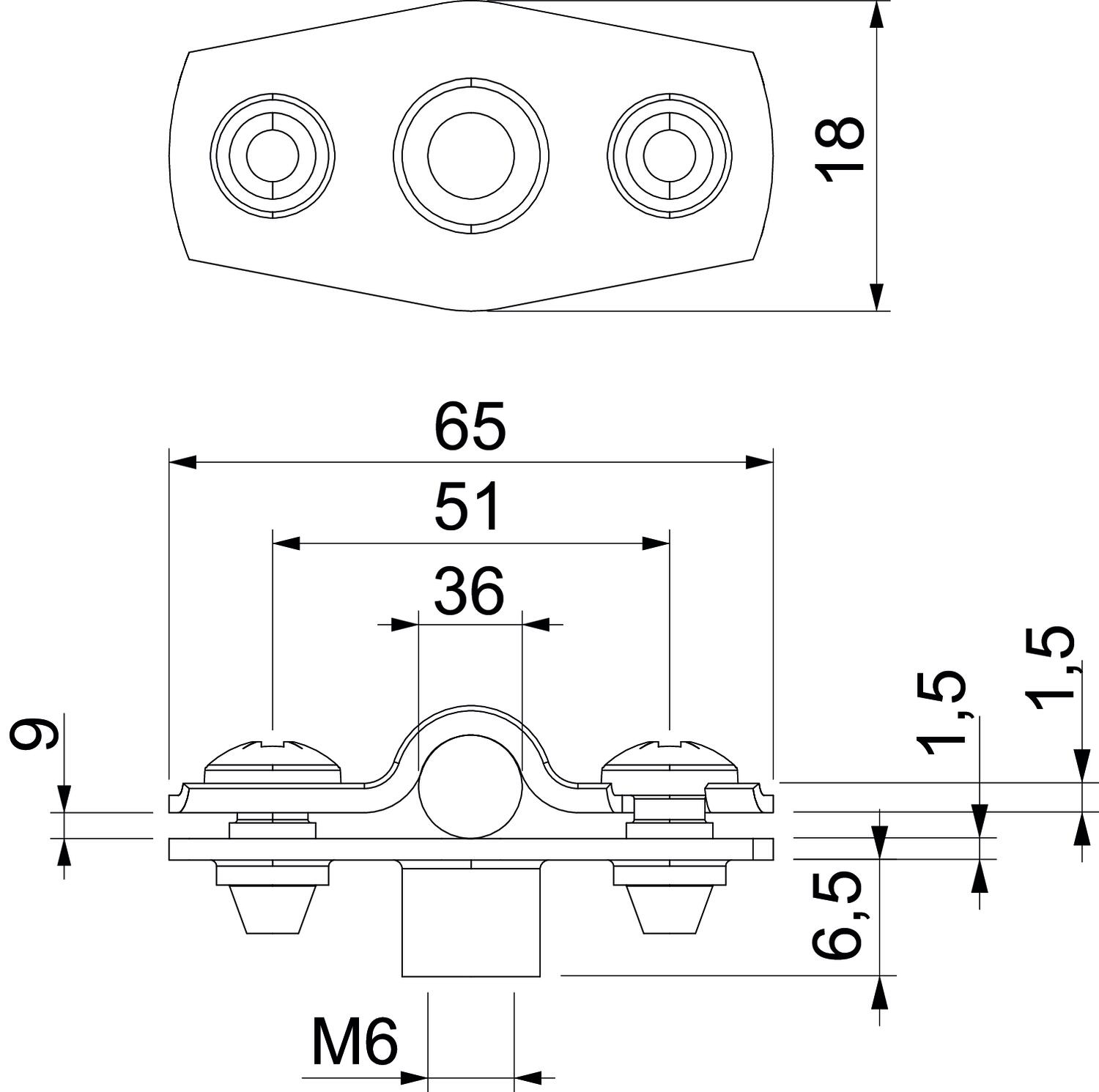

Clamping range D, max. 36 mm Clamping range D, min. 30 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,925 kg CO₂e / 1 Meter Dimension 30-36mm Dimension A 65 mm Dimension B 51 mm Dimension b 18 mm Dimension D 36 mm Dimension d max. 36 mm Dimension d min. 30 mm Dimension H1 12 mm Dimension t1 (mm) 1,5 Dimension t2 (mm) 1,5 Dimension x 9 mm Distance to the wall yes Fastening type Threaded connection For diameter 30 - 36 Halogen-free yes Material Stainless steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes UV-resistant yes Version for Closed - All types
-
All types
