Spacer clip 732 FT 1.25 | | 5 | 6 | Steel | Hot-dip galvanised

Spacer clip 732 FT

Item no. 1362354 | EAN 4012196599332

Item no. / Types

Material thickness

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

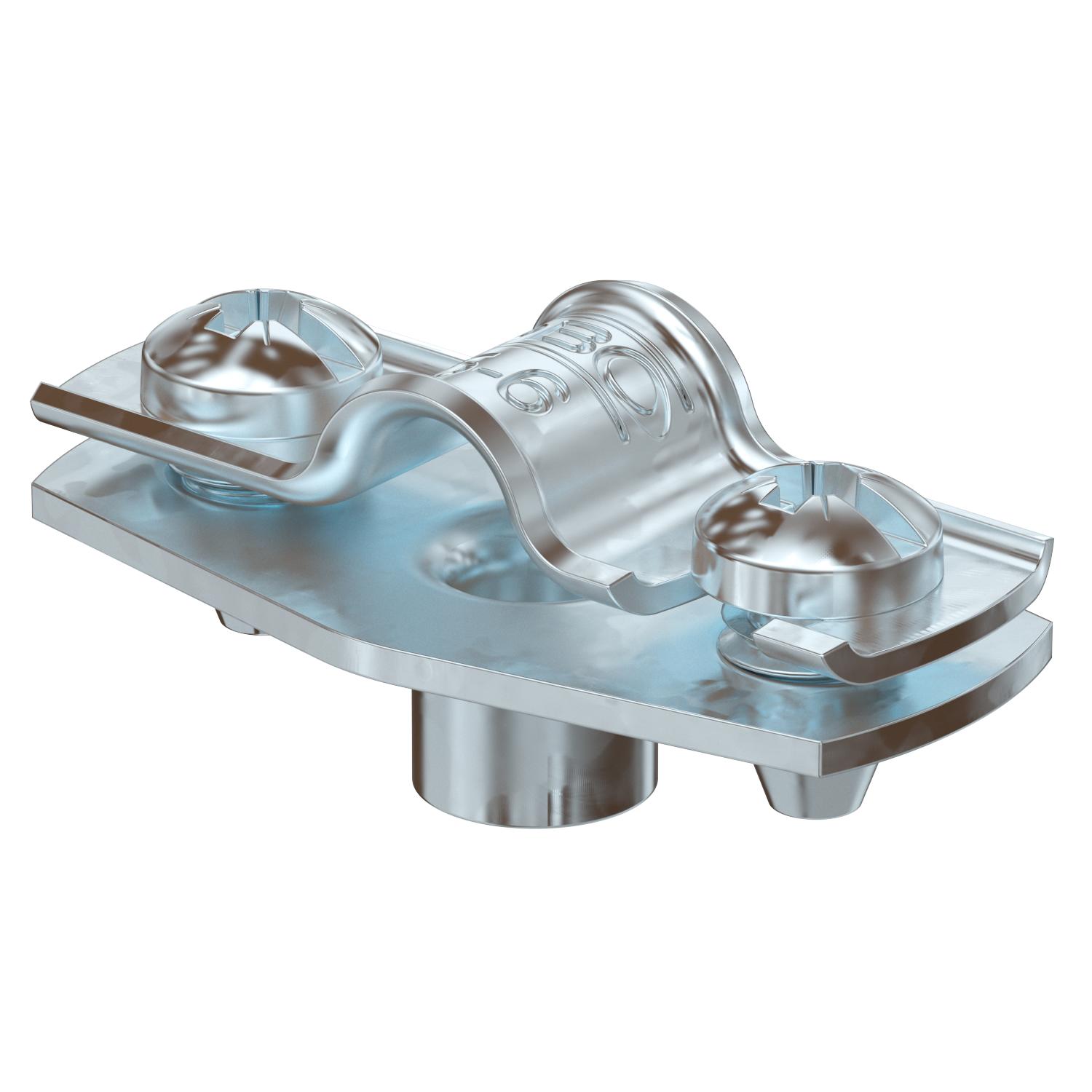

Spacer clip for the installation of pipes and cables on walls, ceiling and floors. With self-locking upper part. Surfaces G and FT from a clip size of 20 are suitable for installation with a nail device or a bolt-firing tool.

Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90.

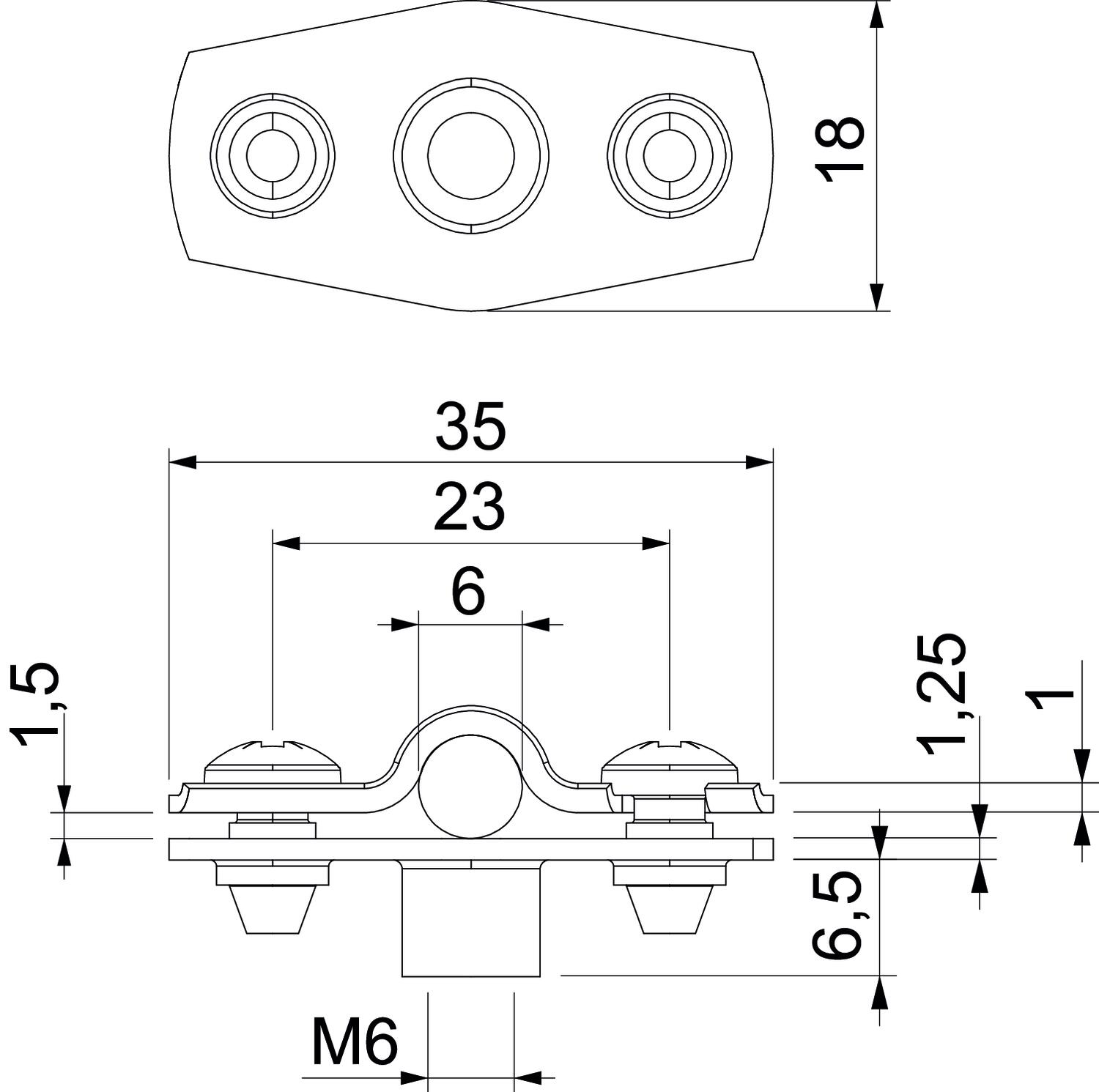

Technical data

Technical data

Clamping range D, max.	6 mm
Clamping range D, min.	5 mm
CO₂ Fußabdruck (GWP) Cradle-to-Gate	0,147 kg CO₂e / 1 Stück
Dimension	5-6mm
Dimension A	35 mm
Dimension b	18 mm
Dimension B	23 mm
Dimension D	6 mm
Dimension d max.	6 mm
Dimension d min.	5 mm
Dimension H1	6,5 mm
Dimension t1 (mm)	1
Dimension t2 (mm)	1,25

Dimension x	1,5 mm
Distance to the wall	yes
Fastening type	Threaded connection
For diameter	5 - 6
Halogen-free	yes
Material	Steel
Material thickness	1,25 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	yes
Surface	Hot-dip galvanised
UV-resistant	yes
Version for	Closed

All types

All types

Types	Material thickness	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
ASG 732 6 FT	1.25 mm	5 mm	6 mm	Steel	Hot-dip galvanised	1362354	piece	25 piece
ASG 732 7 FT	1.25 mm	6 mm	7 mm	Steel	Hot-dip galvanised	1362356	piece	25 piece
ASG 732 8 FT	1.25 mm	7 mm	8 mm	Steel	Hot-dip galvanised	1362358	piece	25 piece
ASG 732 10 FT	1.25 mm	8 mm	10 mm	Steel	Hot-dip galvanised	1362360	piece	25 piece
ASG 732 12 FT	1.25 mm	10 mm	12 mm	Steel	Hot-dip galvanised	1362362	piece	25 piece
ASG 732 14 FT	1.25 mm	12 mm	14 mm	Steel	Hot-dip galvanised	1362364	piece	25 piece
ASG 732 17 FT	1.25 mm	14 mm	17 mm	Steel	Hot-dip galvanised	1362367	piece	25 piece
ASG 732 20 FT	1.25 mm	17 mm	20 mm	Steel	Hot-dip galvanised	1362369	piece	25 piece
ASG 732 25 FT	1.25 mm	20 mm	25 mm	Steel	Hot-dip galvanised	1362372	piece	25 piece
ASG 732 30 FT	1.5 mm	25 mm	30 mm	Steel	Hot-dip galvanised	1362374	piece	20 piece
ASG 732 36 FT	1.5 mm	30 mm	36 mm	Steel	Hot-dip galvanised	1362378	piece	20 piece
ASG 732 44 FT	1.5 mm	36 mm	44 mm	Steel	Hot-dip galvanised	1362382	piece	20 piece
ASG 732 53 FT	1.5 mm	44 mm	53 mm	Steel	Hot-dip galvanised	1362386	piece	20 piece
ASG 732 63 FT	1.5 mm	53 mm	63 mm	Steel	Hot-dip galvanised	1362389	piece	20 piece
