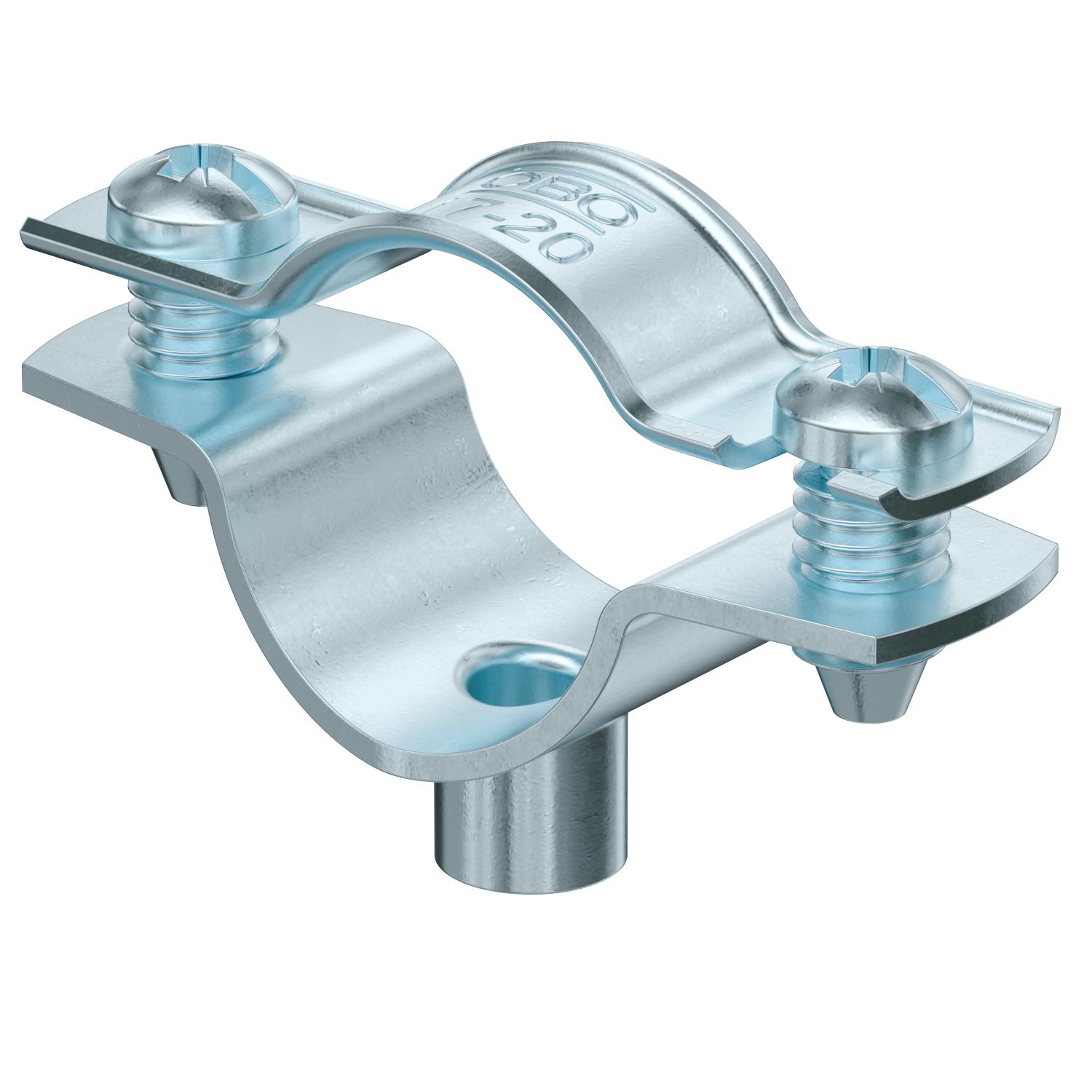

Spacer clip 732 G
Item no. 1362420 | EAN 4012196599653
- Product description
-
Product descriptionSpacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via attachment piece with internal thread.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
-
- Technical data
-
Technical data

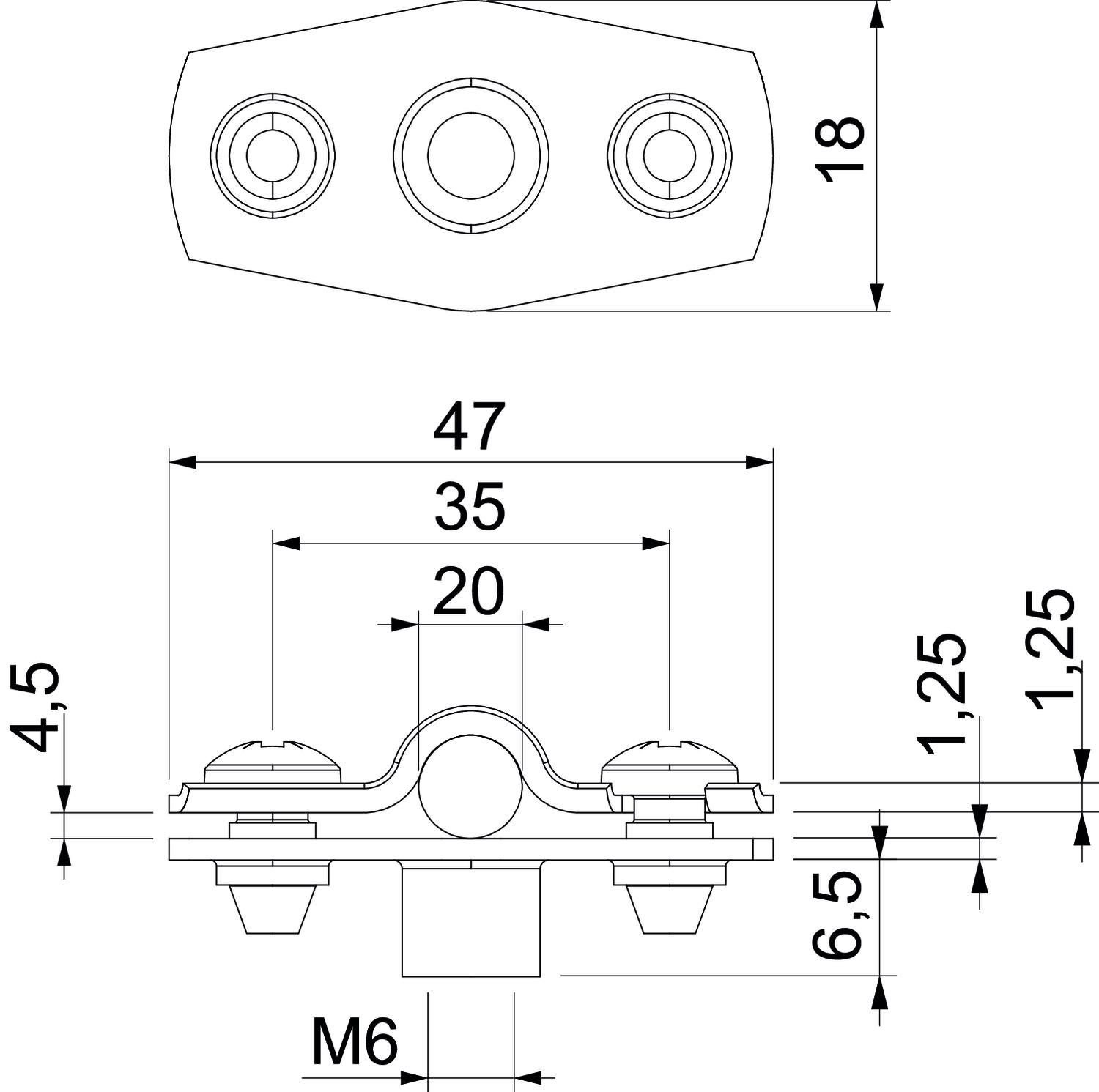

Clamping range D, max. 20 mm Clamping range D, min. 17 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,058 kg CO₂e / 1 Piece Dimension 17-20mm Dimension A 47 mm Dimension b 18 mm Dimension B 35 mm Dimension D 20 mm Dimension d max. 20 mm Dimension d min. 17 mm Dimension H1 6,5 mm Dimension t1 (mm) 1,25 Dimension t2 (mm) 1,25 Dimension x 4,5 mm Distance to the wall yes Fastening type Threaded connection For diameter 17 - 20 Halogen-free yes Material Steel Material thickness 1,25 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes Surface Electrogalvanized UV-resistant yes Version for Closed - All types
-
All types
