Spacer clip 732 G
Item no. 1362440 | EAN 4012196599707
- Product description
-

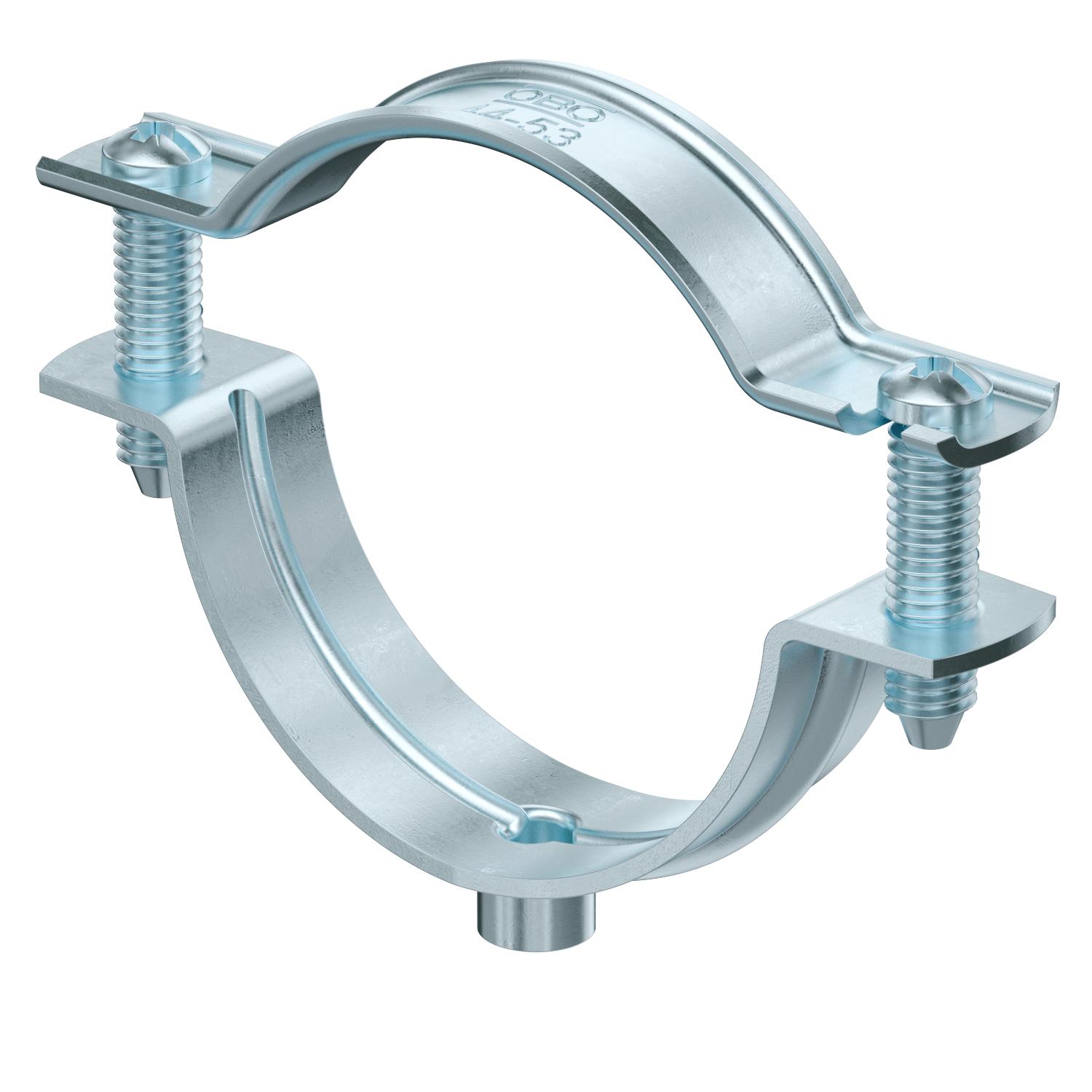

Product descriptionSpacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via attachment piece with internal thread.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
-
- Technical data
-
Technical data

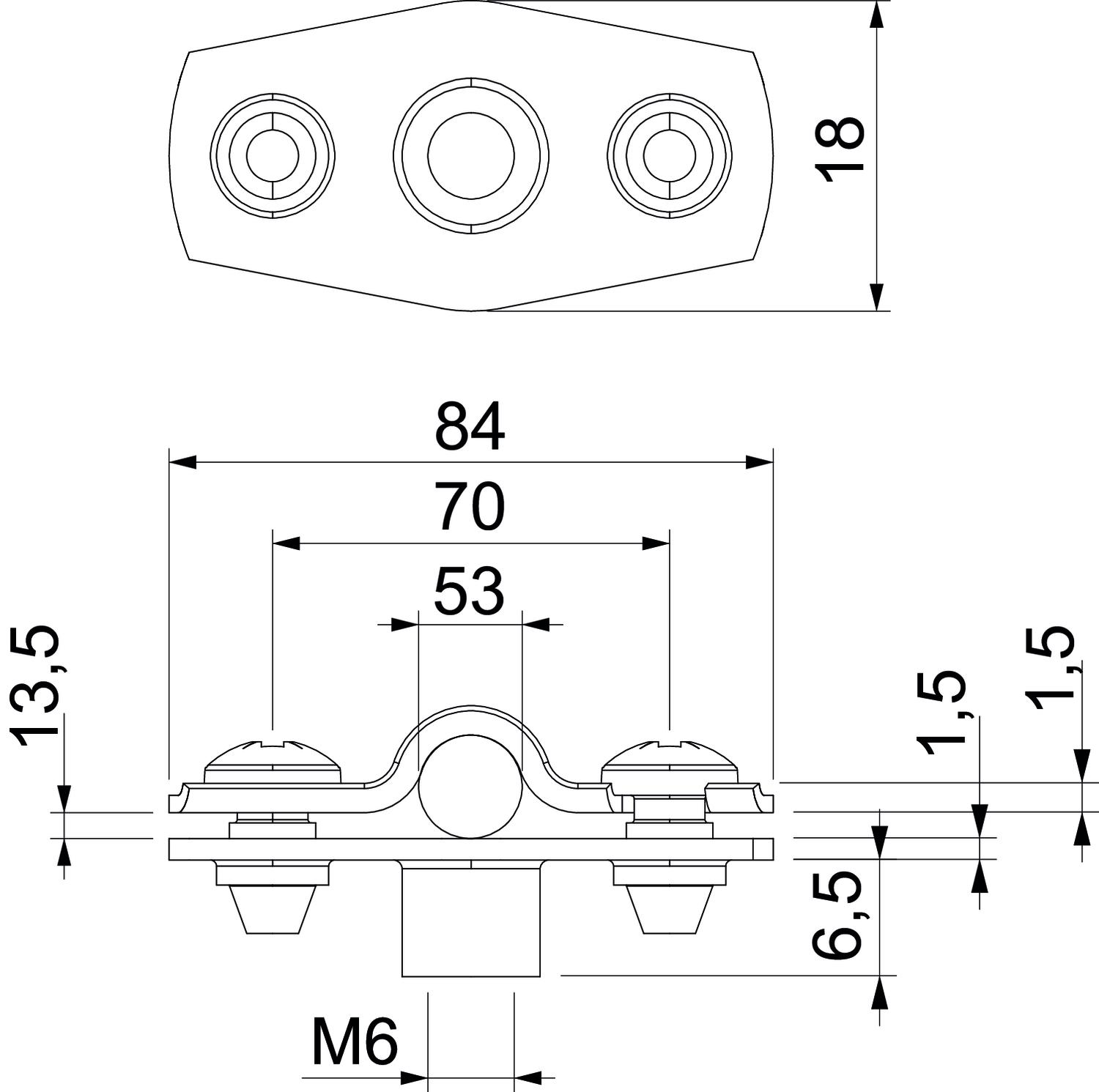

Clamping range D, max. 53 mm Clamping range D, min. 44 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,137 kg CO₂e / 1 Piece Dimension 44-53mm Dimension A 84 mm Dimension b 18 mm Dimension B 70 mm Dimension D 53 mm Dimension d max. 53 mm Dimension d min. 44 mm Dimension H1 6,5 mm Dimension t1 (mm) 1,5 Dimension t2 (mm) 1,5 Dimension x 13,5 mm Distance to the wall yes Fastening type Threaded connection For diameter 44 - 53 Halogen-free yes Material Steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes Surface Electrogalvanized UV-resistant yes Version for Closed - All types
-
All types
