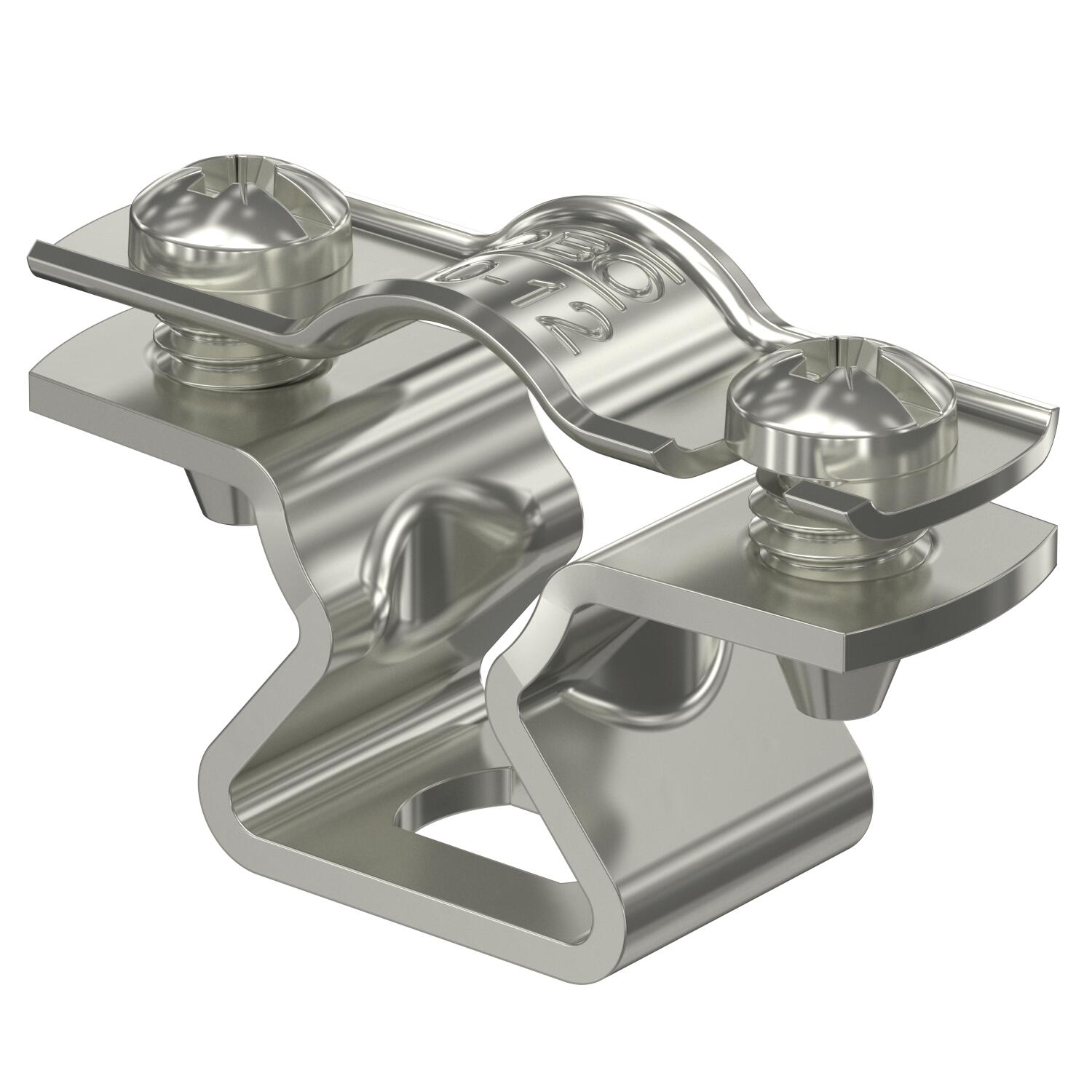

Spacer clip 733 A4
Item no. 1362906 | EAN 4012196600267
- Product description
-
Product description
Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
-
- Technical data
-
Technical data

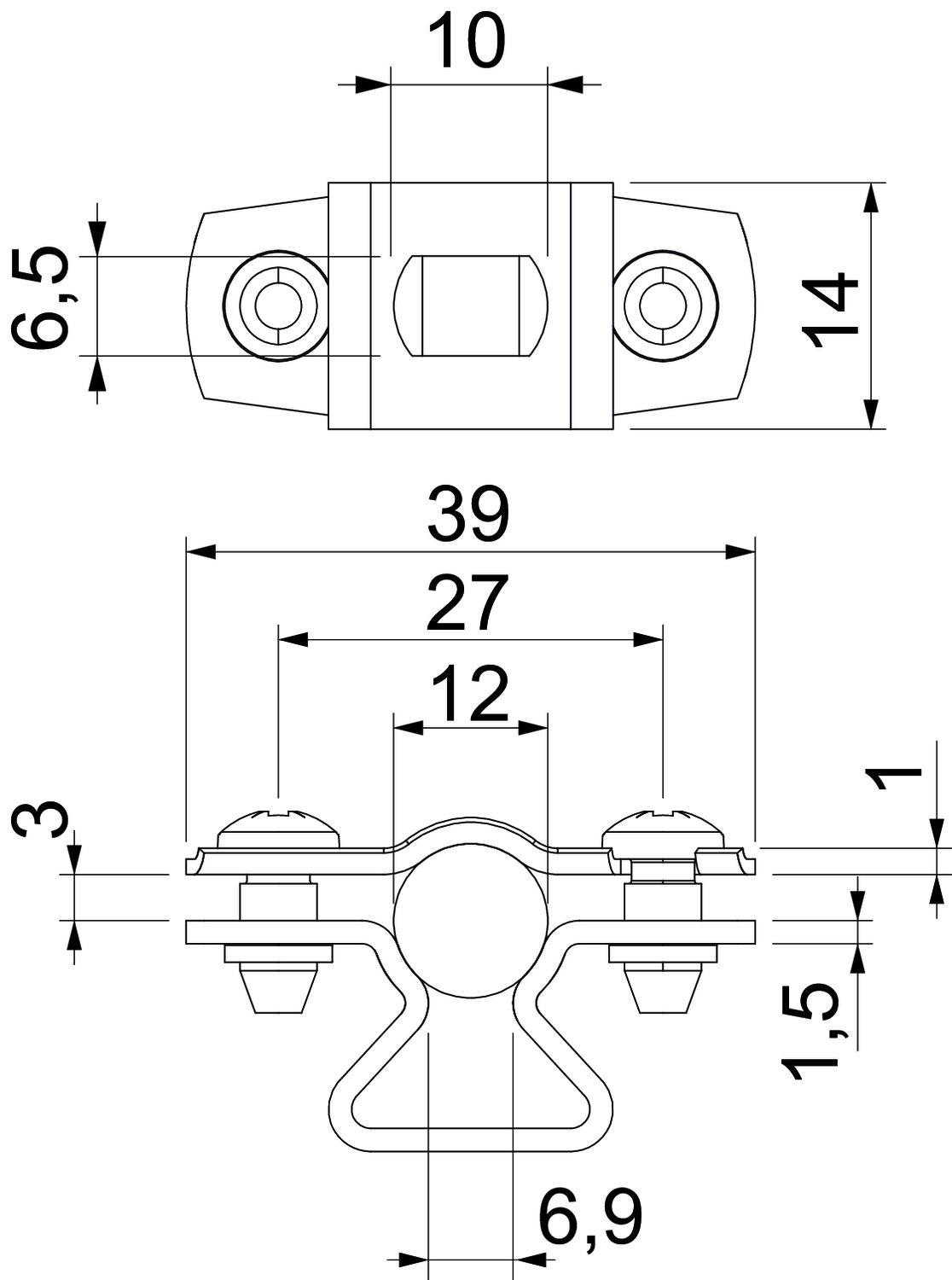

Clamping range D, max. 12 mm Clamping range D, min. 10 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,925 kg CO₂e / 1 Meter Dimension 10-12mm Dimension A 39 mm Dimension B 27 mm Dimension b 14 mm Dimension D 12 mm Dimension d max. 12 mm Dimension d min. 10 mm Dimension L 10 mm Dimension s 6,9 mm Dimension t1 (mm) 1 Dimension t2 (mm) 1,5 Dimension x 3 mm Distance to the wall yes Fastening type Screw hole For diameter 10 - 12 Halogen-free yes Material Stainless steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASL 733 12 A4 / 1362906 , 0.23MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity ASL 733 12 A4 / 1362906 , 0.13MB , pdfREACH Declaration of conformity ASL 733 12 A4 / 1362906 , 0.12MB , pdfRoHS Declaration of conformity ASL 733 12 A4 / 1362906 , 0.12MB , pdf
