Spacer clip 733 A4
Item no. 1362918 | EAN 4012196600304
- Product description
-
Product description

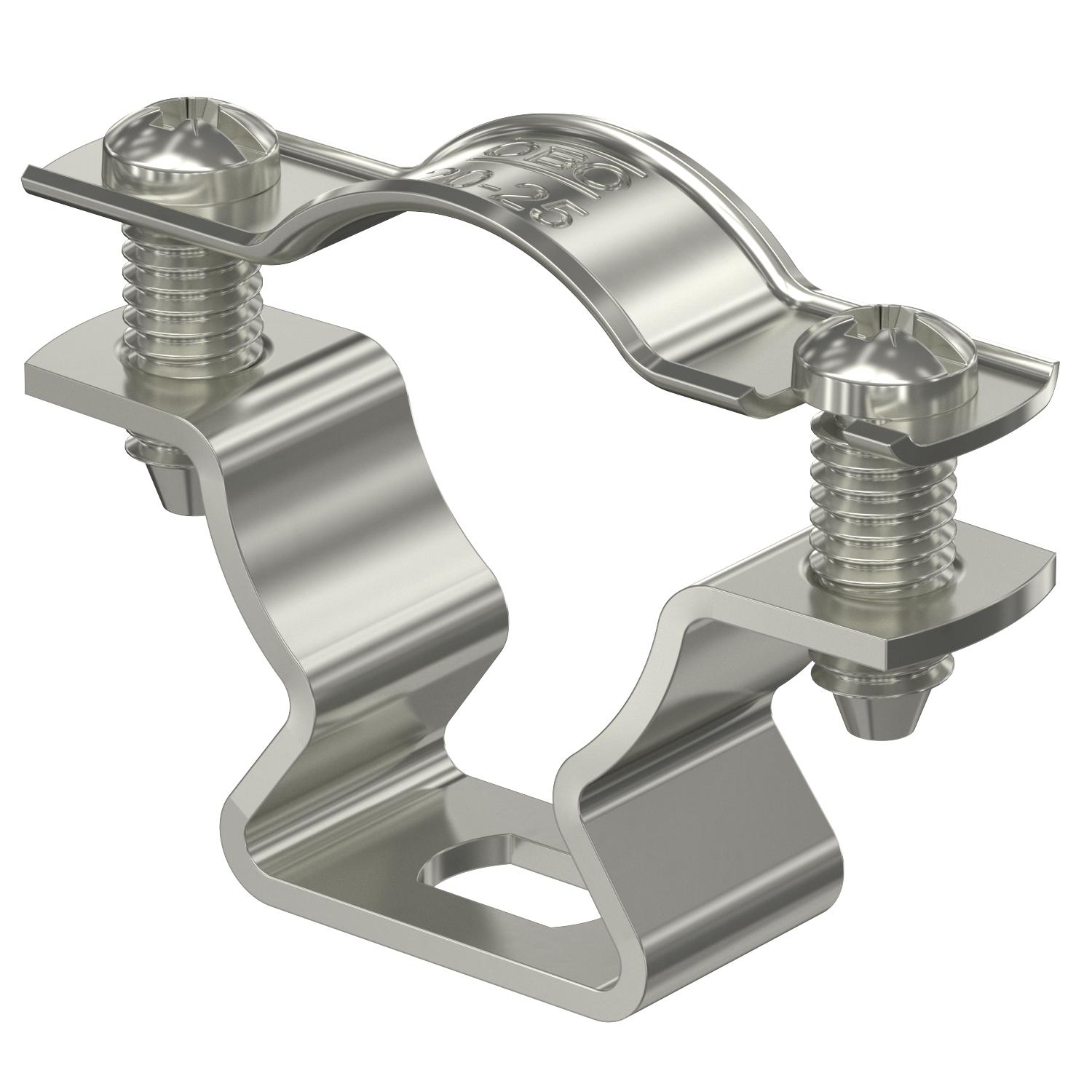

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
-
- Technical data
-
Technical data

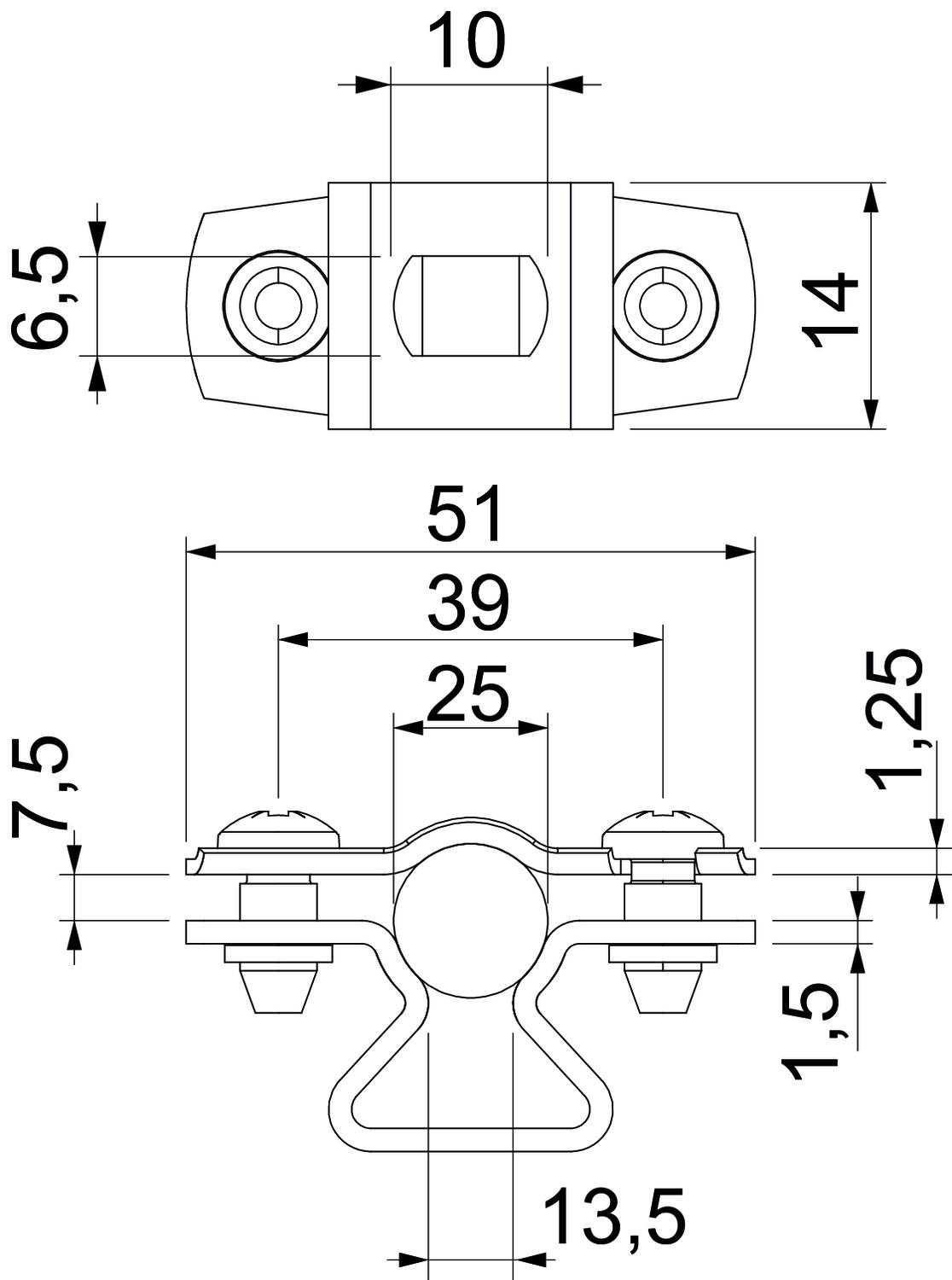

Clamping range D, max. 25 mm Clamping range D, min. 20 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,925 kg CO₂e / 1 Meter Dimension 20-25mm Dimension A 51 mm Dimension b 14 mm Dimension B 39 mm Dimension D 25 mm Dimension d max. 25 mm Dimension d min. 20 mm Dimension L 10 mm Dimension s 13,5 mm Dimension t1 (mm) 1,25 Dimension t2 (mm) 1,5 Dimension x 7,5 mm Distance to the wall yes Fastening type Screw hole For diameter 20 - 25 Halogen-free yes Material Stainless steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes UV-resistant yes Version for Closed - All types
-
All types
