Spacer clip 733 A4
Item no. 1362938 | EAN 4012196600366
- Product description
-

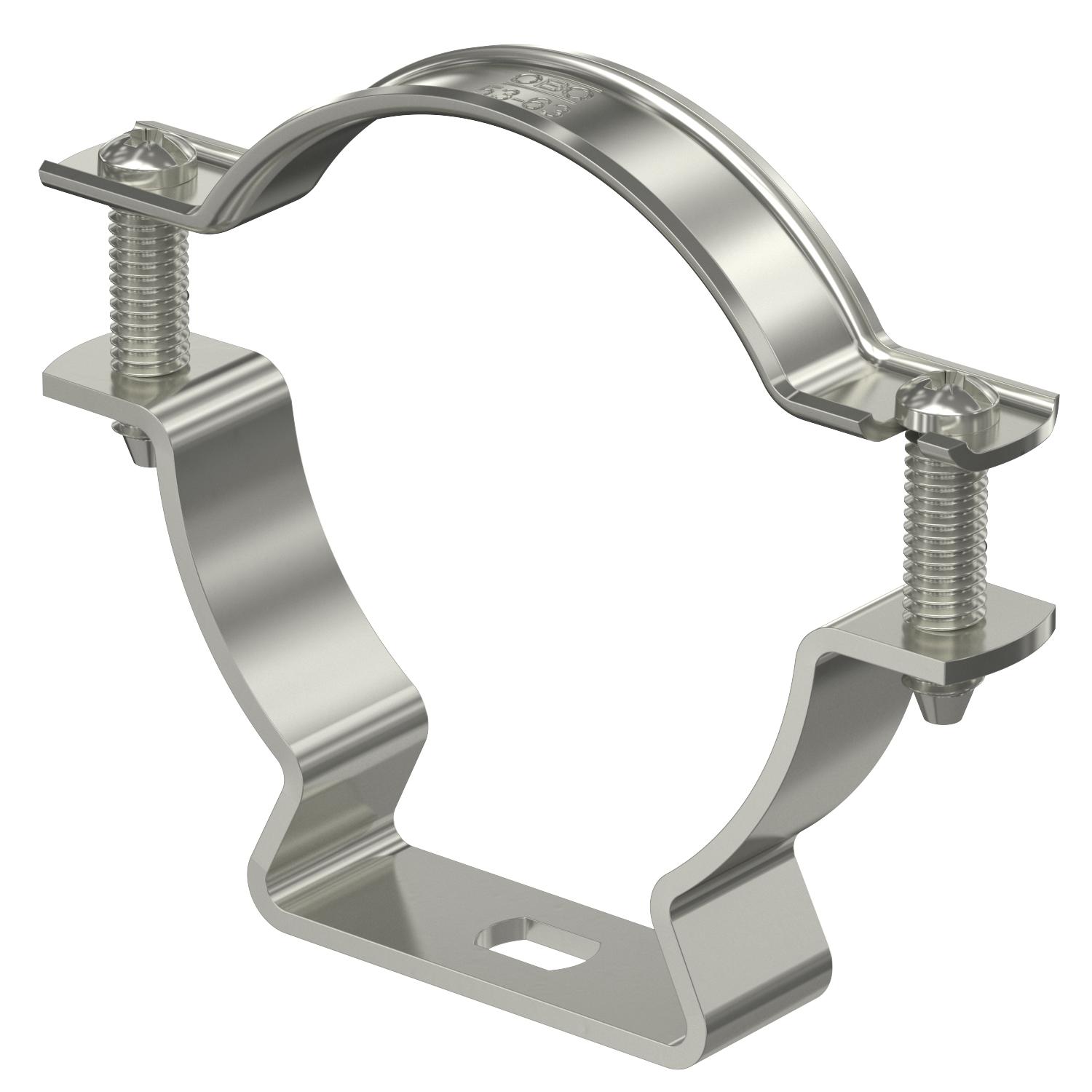

Product descriptionSpacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
-
- Technical data
-
Technical data

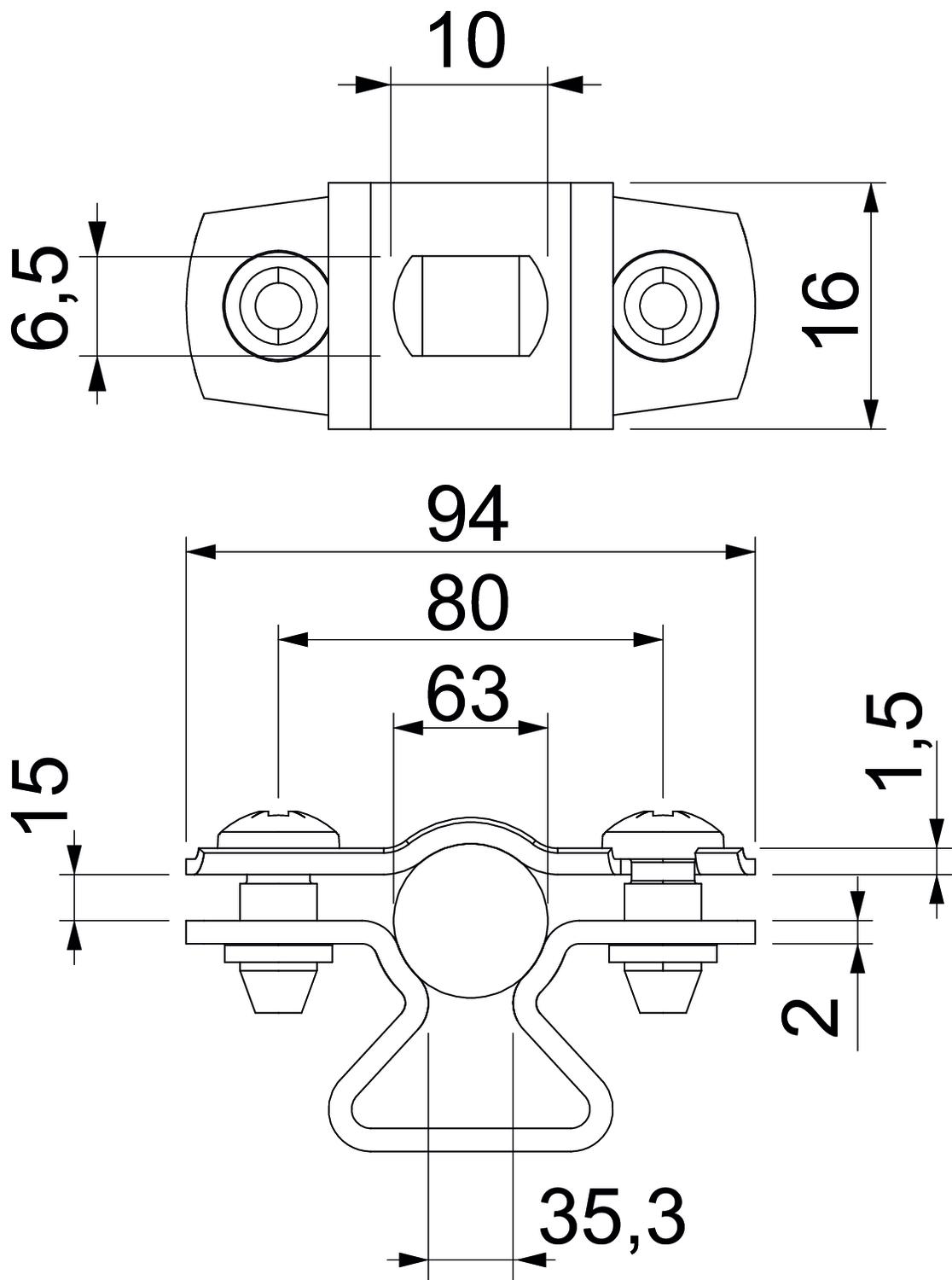

Clamping range D, max. 63 mm Clamping range D, min. 53 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,435 kg CO₂e / 1 Piece Dimension 53-63mm Dimension A 94 mm Dimension b 16 mm Dimension B 80 mm Dimension D 63 mm Dimension d max. 63 mm Dimension d min. 53 mm Dimension L 10 mm Dimension s 35,3 mm Dimension t1 (mm) 1,5 Dimension t2 (mm) 2 Dimension x 15 mm Distance to the wall yes Fastening type Screw hole For diameter 53 - 63 Halogen-free yes Material Stainless steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASL 733 63 A4 / 1362938 , 0.22MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity ASL 733 63 A4 / 1362938 , 0.13MB , pdfREACH Declaration of conformity ASL 733 63 A4 / 1362938 , 0.12MB , pdfRoHS Declaration of conformity ASL 733 63 A4 / 1362938 , 0.12MB , pdf
