Spacer clip 733 ALU
1.5 | | 20 | 25 | Aluminium |

Spacer clip 733 ALU

Item no. 1362818 | EAN 4012196600182

Item no. / Types

Material thickness	1.5 mm

Clamping range D, min.

Clamping range D, max.

Material	Aluminium

Product description

Product description

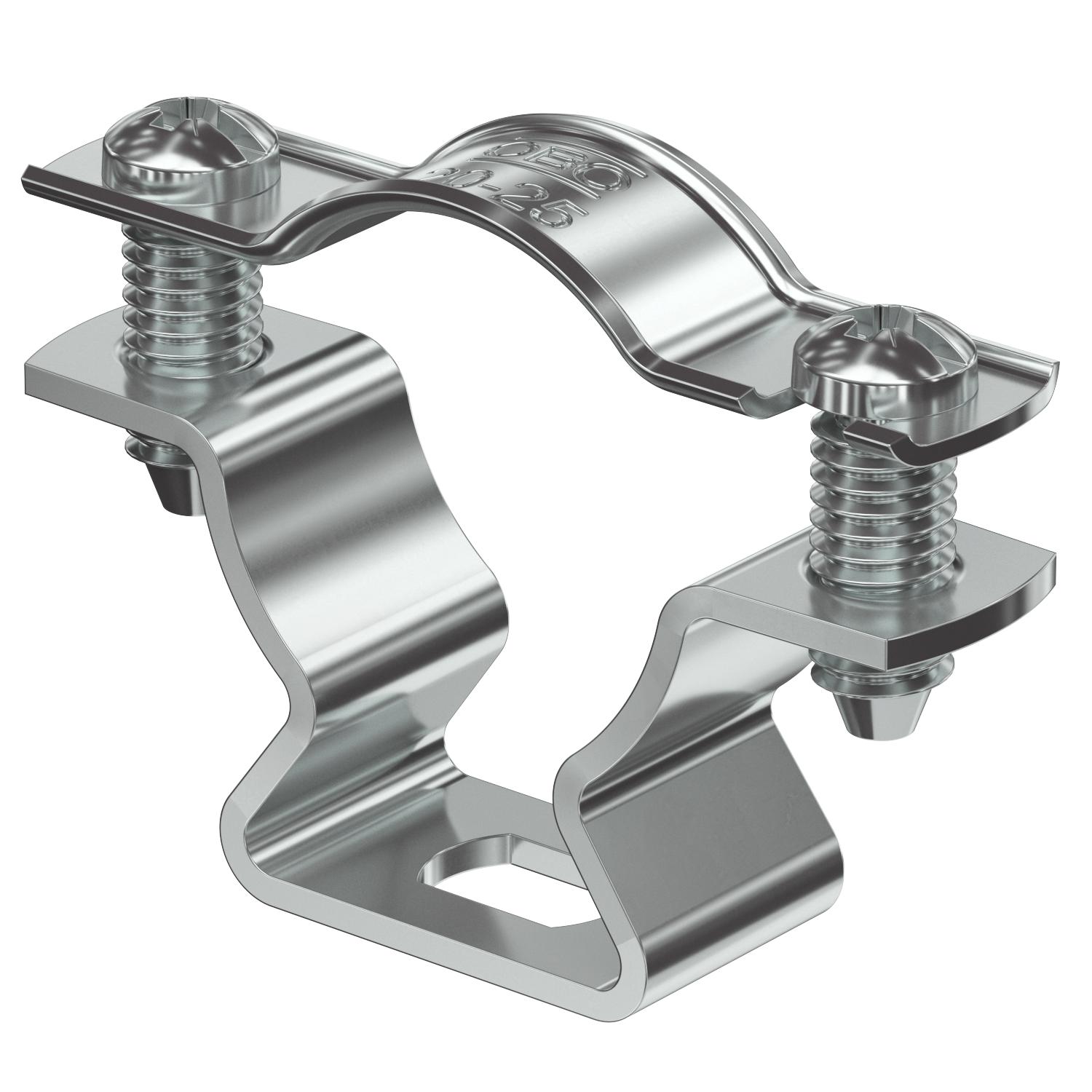

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking upper part. Fastening via slot. From the clip size of 20 suitable for installation with a nail device or bolt-firing device.

Approved for the maintenance of electrical function to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90 (except ALU).

Technical data

Technical data

Clamping range D, max.	25 mm
Clamping range D, min.	20 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,925 kg CO₂e / 1 Meter

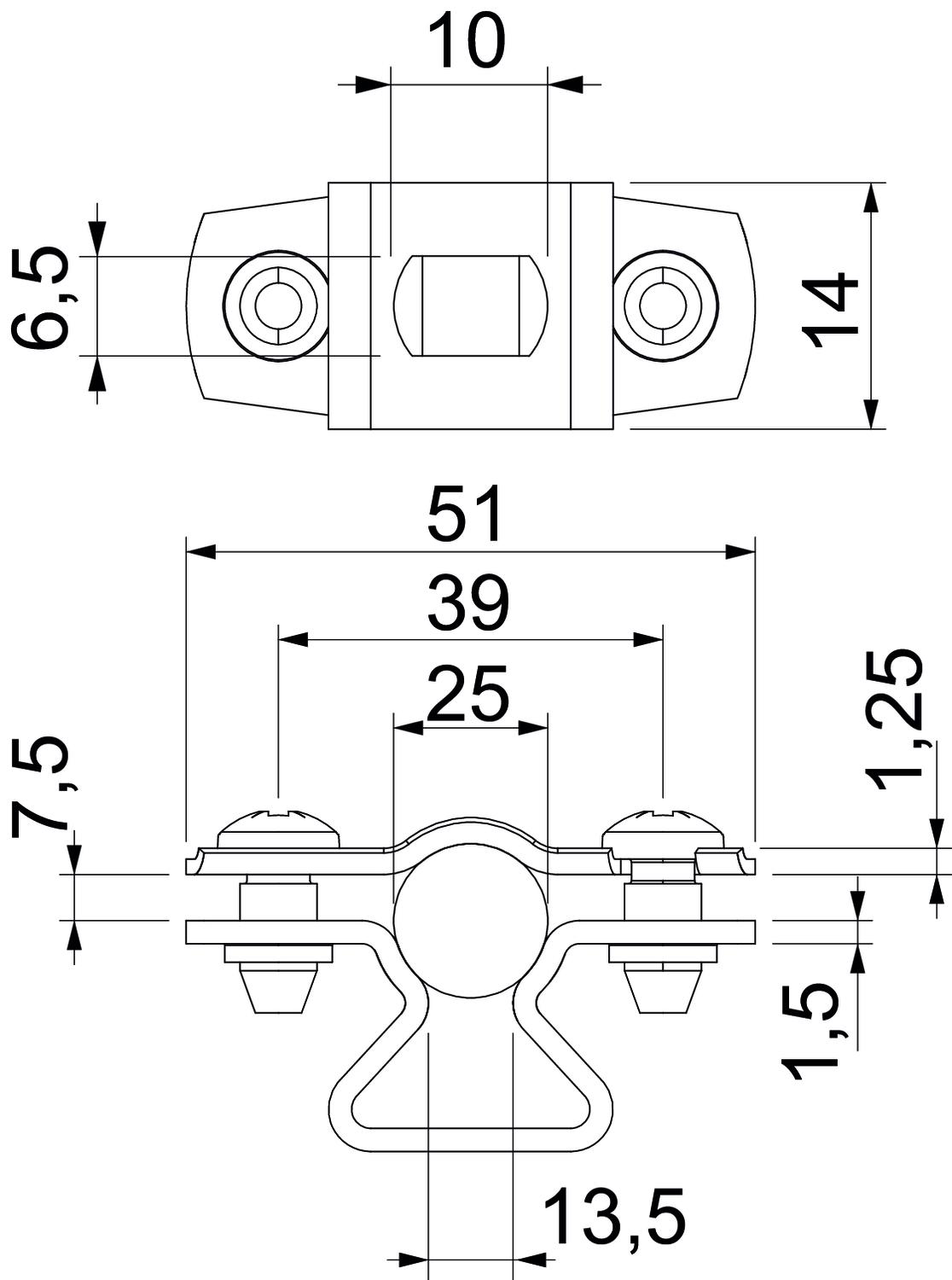

Dimension	20-25mm
Dimension A	51 mm
Dimension B	39 mm
Dimension b	14 mm
Dimension D	25 mm
Dimension d max.	25 mm
Dimension d min.	20 mm
Dimension L	10 mm
Dimension s	13,5 mm
Dimension t1 (mm)	1,25

Dimension t2 (mm)	1,5
Dimension x	7,5 mm
Distance to the wall	yes
Fastening type	Screw hole
For diameter	20 - 25
Halogen-free	yes
Material	Aluminium
Material thickness	1,5 mm
Number of cables/pipes	1
Plastic-covered	no
UV-resistant	yes
Version for	Closed

All types

All types

Types	Material thickness	Clamping range D, min.	Clamping range D, max.	Material	Item no.	Quantity	SSU
ASL 733 10 ALU	1.5 mm	8 mm	10 mm	Aluminium	1362804	piece	25 piece
ASL 733 12 ALU	1.5 mm	10 mm	12 mm	Aluminium	1362806	piece	25 piece
ASL 733 14 ALU	1.5 mm	12 mm	14 mm	Aluminium	1362808	piece	25 piece
ASL 733 17 ALU	1.5 mm	14 mm	17 mm	Aluminium	1362812	piece	25 piece
ASL 733 20 ALU	1.5 mm	17 mm	20 mm	Aluminium	1362814	piece	25 piece
ASL 733 25 ALU	1.5 mm	20 mm	25 mm	Aluminium	1362818	piece	25 piece
ASL 733 30 ALU	1.5 mm	25 mm	30 mm	Aluminium	1362822	piece	20 piece
ASL 733 36 ALU	1.5 mm	30 mm	36 mm	Aluminium	1362826	piece	20 piece
ASL 733 44 ALU	1.5 mm	36 mm	44 mm	Aluminium	1362830	piece	20 piece
ASL 733 53 ALU	1.5 mm	44 mm	53 mm	Aluminium	1362834	piece	20 piece
ASL 733 63 ALU	1.5 mm	53 mm	63 mm	Aluminium	1362838	piece	20 piece
