Support clamp, with cable tie seat 45 | 40 | 33 | | | | 45 | 10 | 15

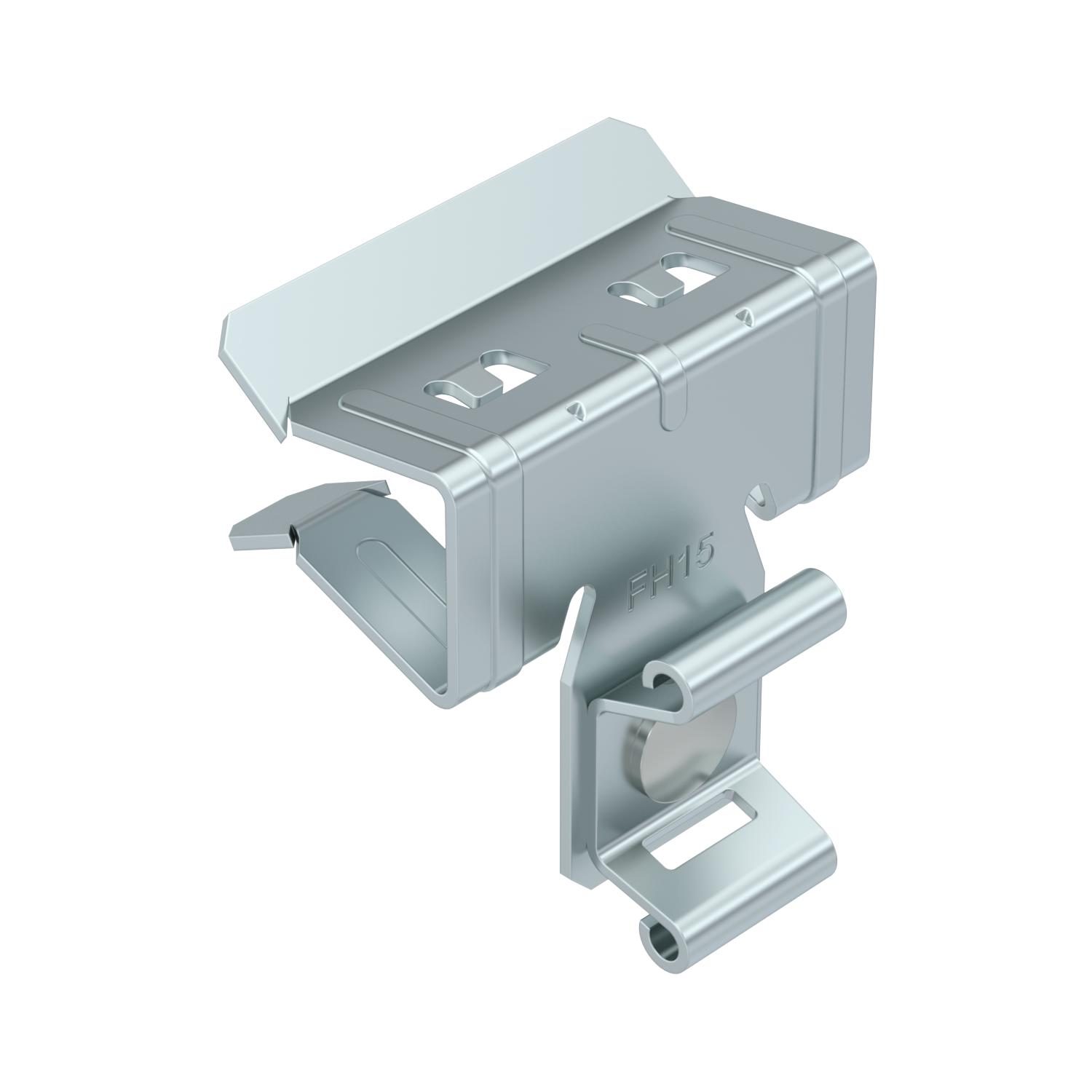

Support clamp, with cable tie seat

Item no. 1488307 | EAN 4012197392055

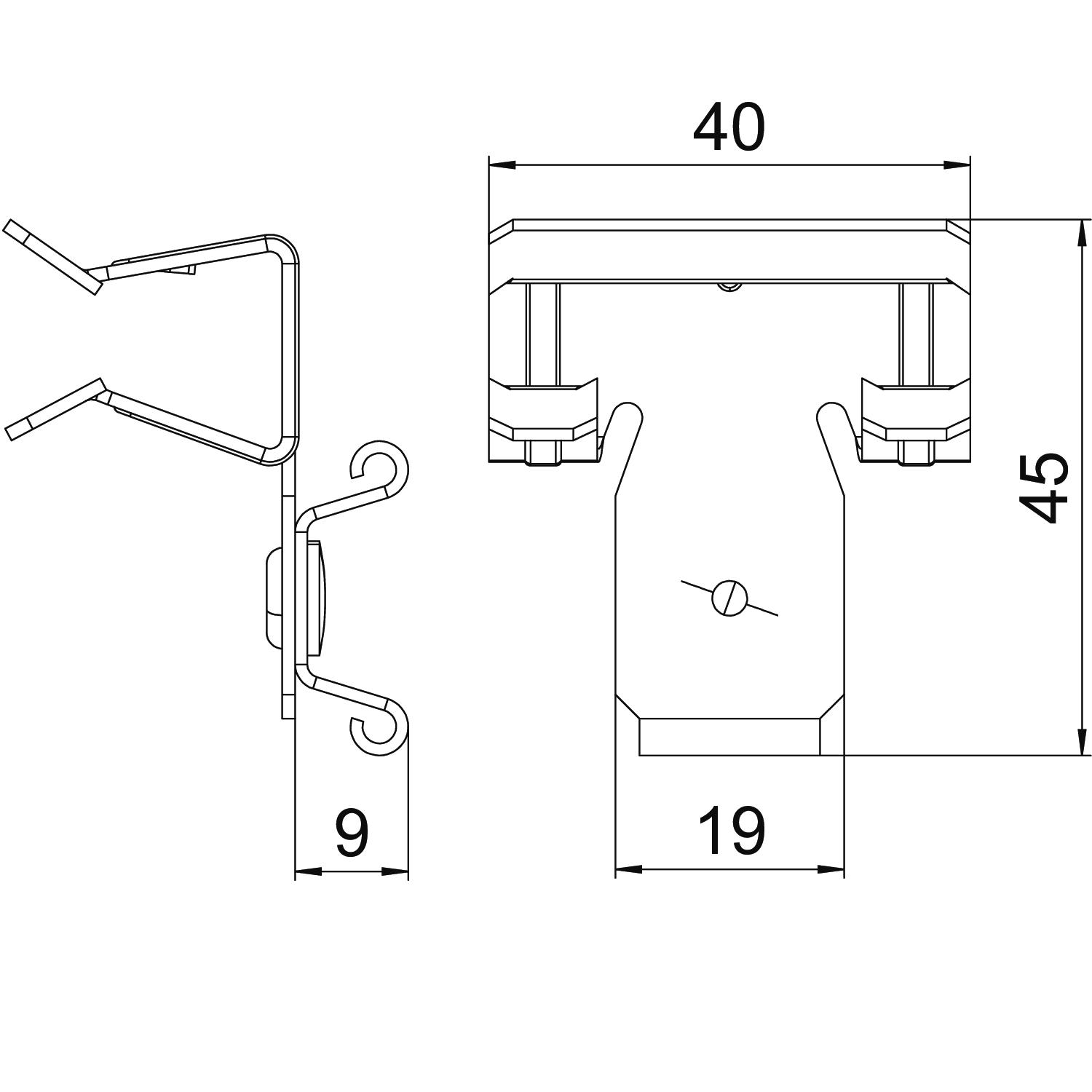

Item no. / Types

Length

Width

Height

Dimension L

Flange thickness F min.

Flange thickness F max.

Product description

Product description

Support clamp for cable ties for mounting cables and pipes. Fastening through knocking onto steel girders. Cable ties not contained in scope of supply.

Technical data

Technical data

Breaking load	0,22 kN
Connection type/component	Pipe/cable
Dimension	10-15mm
Dimension L	45 mm
Fastening type	Clamp
Flange thickness F max.	15 mm
Flange thickness F min.	10 mm
Height	33 mm

Hinge, adjustable	no
Hinged	no
Length	45 mm
Maß W	40 mm
Material	Steel
Surface	Zinc slat
Width	40 mm

All types

All types

Types	Length	Width	Height	Dimension L	Flange thickness F min.	Flange thickness F max.	Item no.	Quantity	SSU
SCCT 1,5-4	33 mm	28 mm	24 mm	33 mm	1.5 mm	4 mm	1488301	piece	50 piece
SCCT 4-10	38 mm	40 mm	32 mm	38 mm	4 mm	10 mm	1488303	piece	50 piece
SCCT 10-15	45 mm	40 mm	33 mm	45 mm	10 mm	15 mm	1488307	piece	50 piece
SCCT 15-20	44 mm	40 mm	33 mm	44 mm	15 mm	20 mm	1488311	piece	50 piece
