Product description

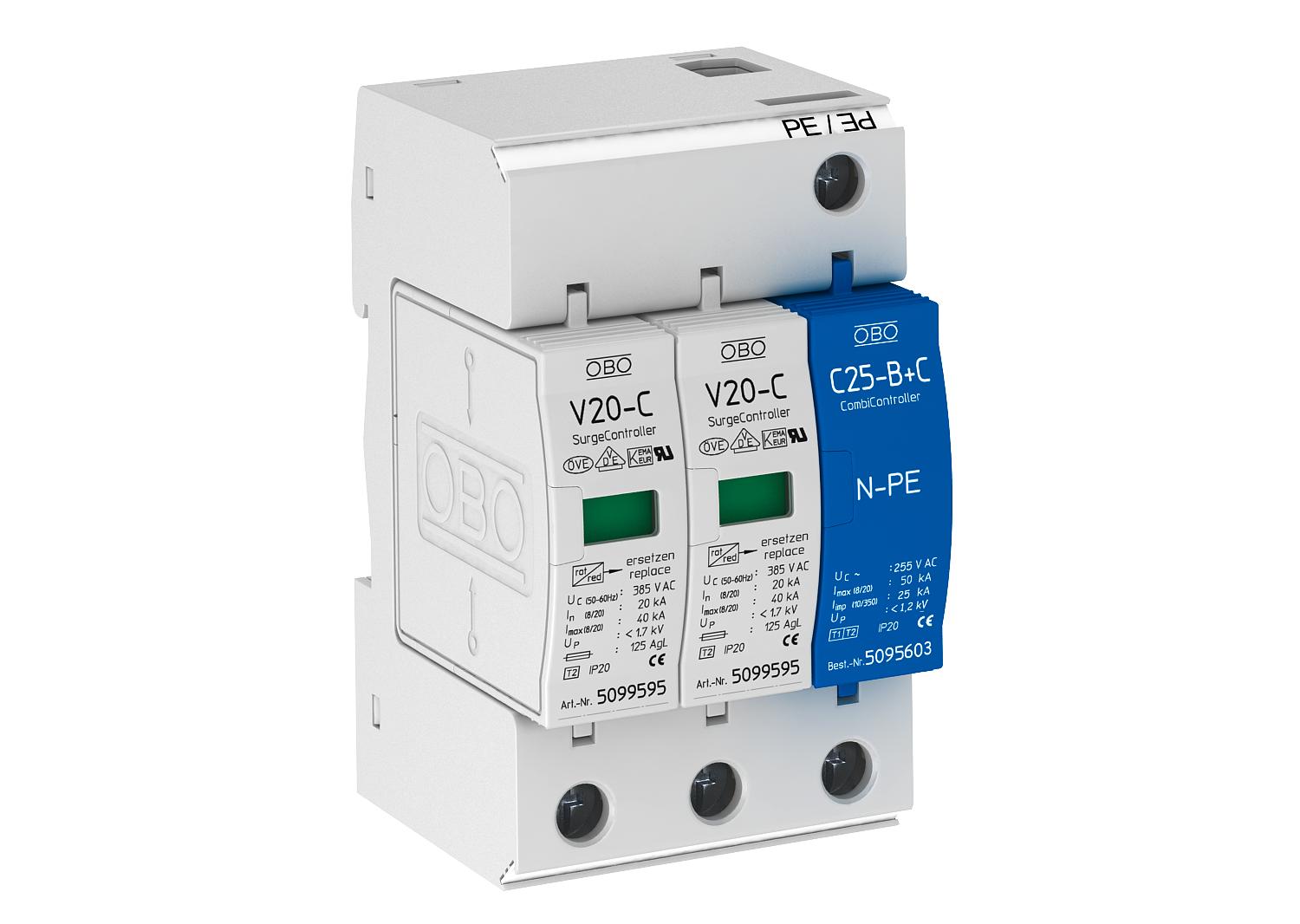

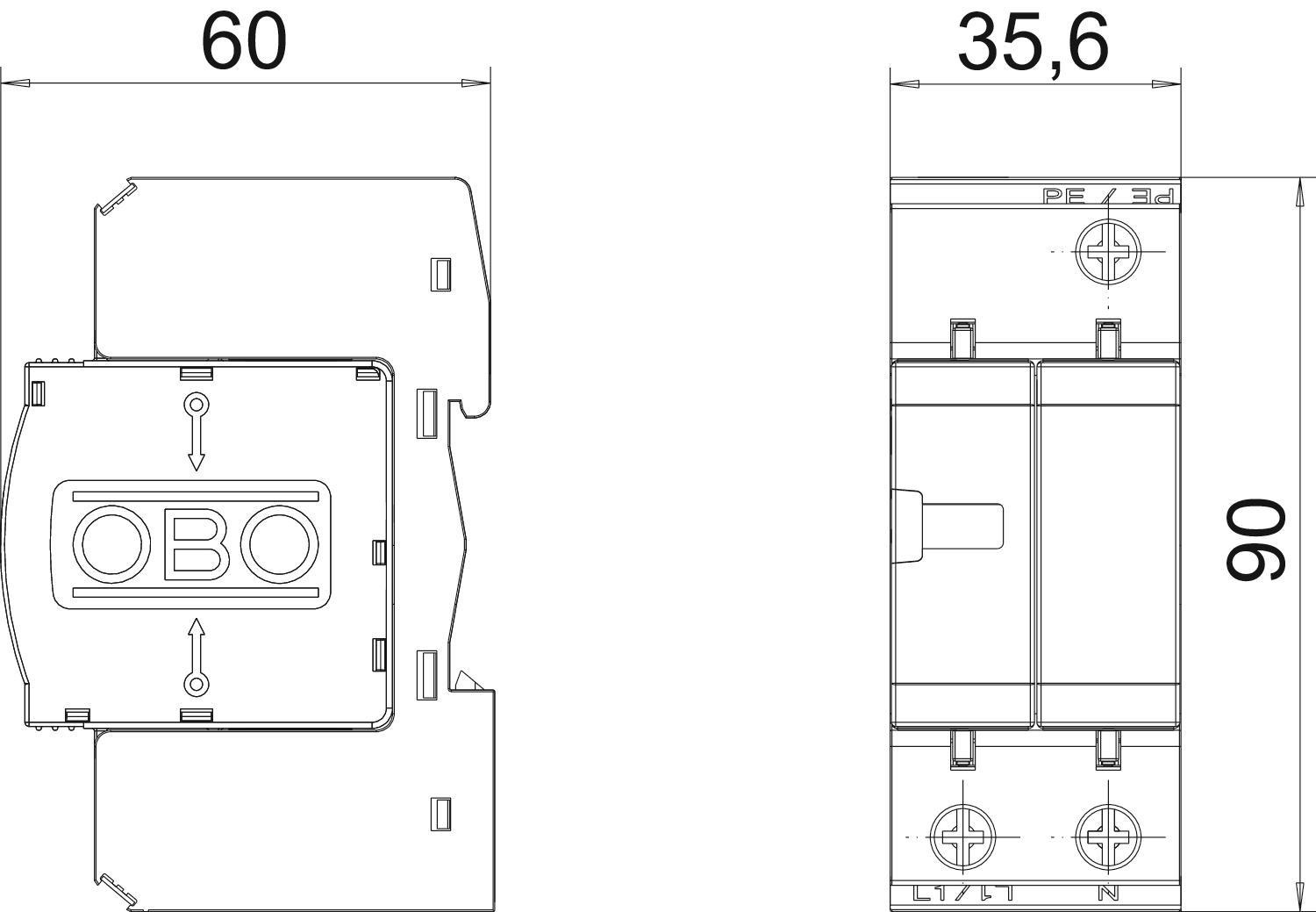

Surge arrester, type 2
• Complete unit consisting of upper part and base, pre-mounted and ready for connection
• Suitable for TN and TT network systems
• Plug-in upper part; upper part can be separated from base without tools
• Incl. thermal and dynamic cut-off unit
• With visual display of defects
• High current conductivity and long service life
• Labelled connections
Application example: Residential buildings, single-family homes and industrial
* Complete = cover and base
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 40 kA Blow-out no Conductor cross-section, flexible (fine-wire), min. 25 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 385V Installation type DIN rail 35 mm Integrated back-up fuse no Lightning protection zone LPZ 1→2 Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage AC 385 Maximum discharge current (8/20 μs) 40 kA Network form Other Nominal discharge current (8/20 µs) 20 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 1+N/PE Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II Test class, type 2 yes Version for 1+NPE - All types
