Truss-head bolt with nut and washer F 35 | | Steel | Hot galvanized

morepic-1

morepic-2

Truss-head bolt with nut and washer F

Item no. 6407048 | EAN 4012196201433

Item no. / Types

Length

Material	Steel

Surface	Hot galvanized

Product description

Product description

Truss-head bolt with square neck including hexagonal nut and washer.

Technical data

Technical data

Dimension	M8x35
Dimension d	8 mm
Dimension D	20 mm
Dimension L	35 mm
Length	35 mm
Material	Steel

Resistance grade	5.6
Surface	Hot galvanized
Thread metric	8
WAF	13
With nut	yes

All types

All types

Types	Length	Material	Surface	Item no.	Quantity	SSU
FRS 12x30 F	30 mm	Steel	Hot galvanized	6406270	piece	50 piece
FRS 8x35 F	35 mm	Steel	Hot galvanized	6407048	piece	50 piece

Downloads

Data sheet FRS 8x35 F / 6407048 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity FRS 8x35 F / 6407048 , 0.06MB , pdf

Download

REACH Declaration of conformity FRS 8x35 F / 6407048 , 0.12MB , pdf

Download

RoHS Declaration of conformity FRS 8x35 F / 6407048 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

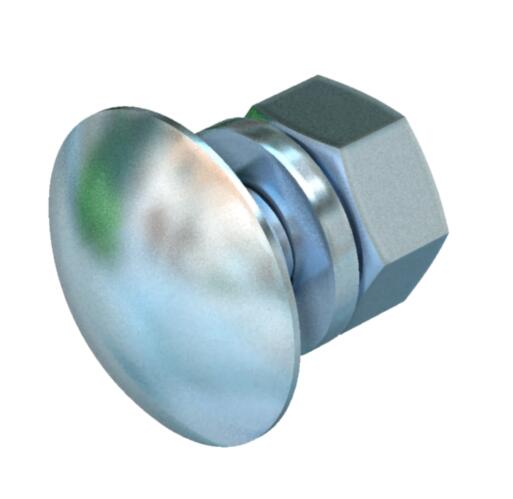

Product graphic FRS 8x35 F / 6407048, 17.81 kB, jpg

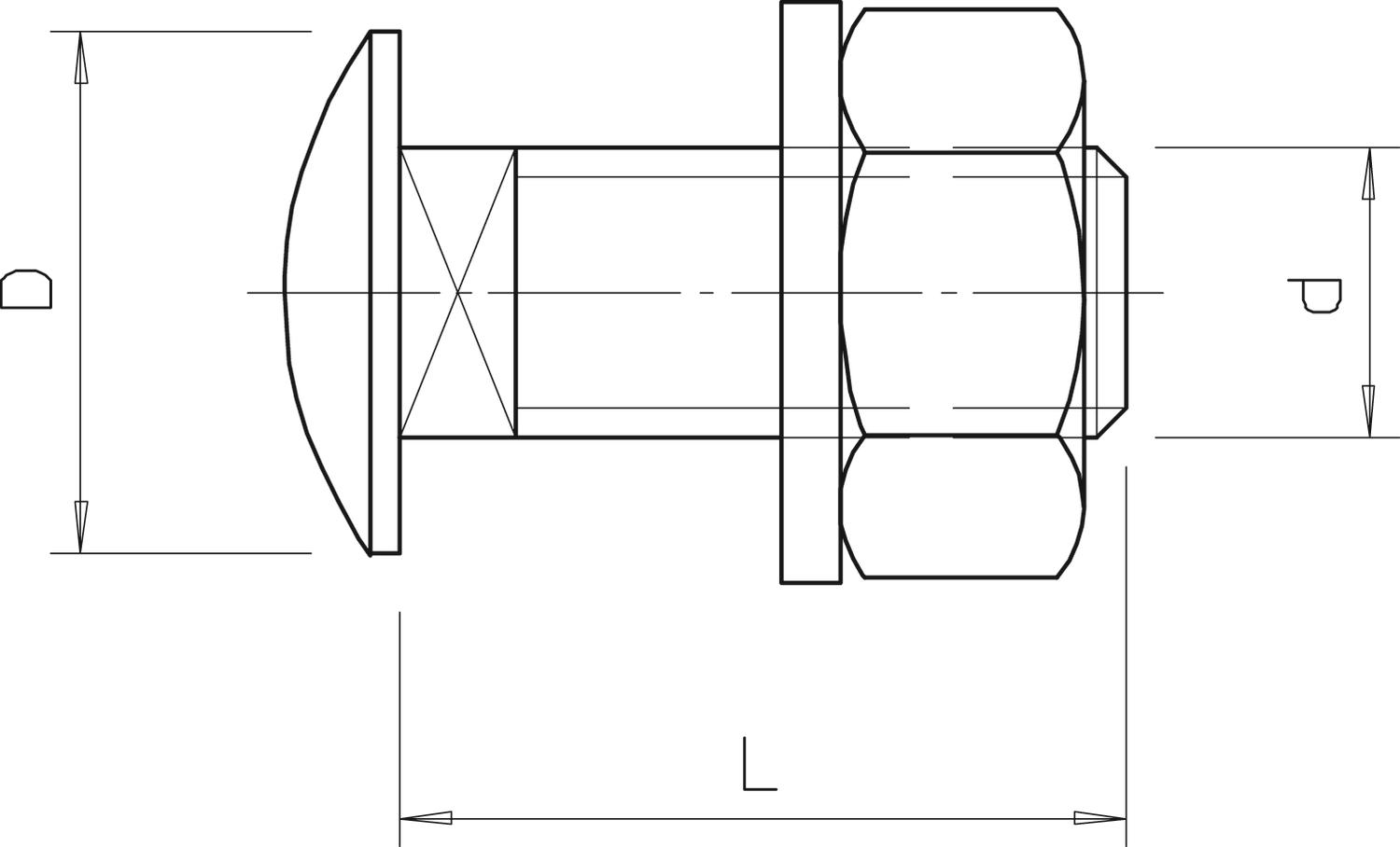

Scale drawing FRS 8x35 F / 6407048, 45.22 kB, jpg

FRS 8x35 F / 6407048

6407048_KSTP1.stp, 161.00 kB
