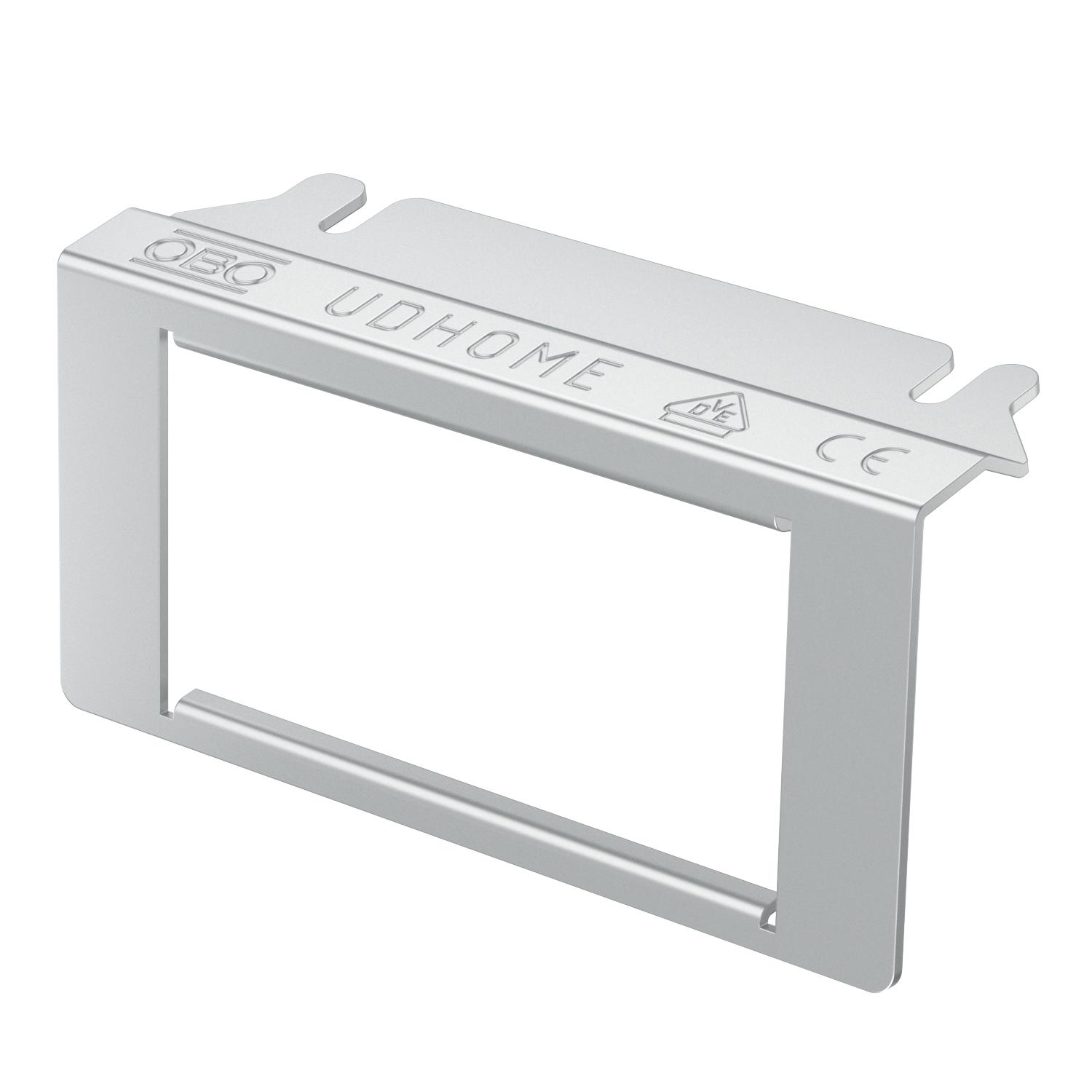

UDHOME-ONE mounting support for 2 Modul 45® installation devices
Item no. 7368485 | EAN 4012197276287
- Product description
-
Product descriptionMounting support to accept up to 2 Modul 45® installation devices. Dimensions of the mounting opening: 37 x 85 mm.
When used with a VDE/NF socket in the UDHOME-ONE with floor covering recess, an angular connector can only be used with an installation height of at least 90 mm. Use straight connectors for lower installation heights.
-
- Technical data
-
Technical data

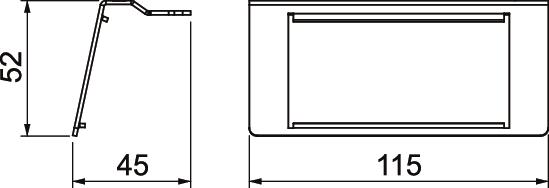

Device type Grid M45 Dimension 45x52x115 Fastening type Lockable Heavy-duty version no Height 52,2 mm Installation technology Grid M45 Labelling panel no Length 115 mm Material Stainless steel Number of installable devices 2 Suitable for wet care no Width 46,3 mm - All types
- Downloads
-
Data sheet MT UH1 2M45 / 7368485 , 0.15MB , pdfEU declaration of conformity MT UH1 2M45 / 7368485 , 0.10MB , pdfMounting instructions Montageträger UDHOME-ONE , 2.58MB , pdf
