Note: This article is discontinued.
Underfloor installation duct, 2-compartment, trunking height 28 mm 2000 | 190 | 2
morepic-1 morepic-2

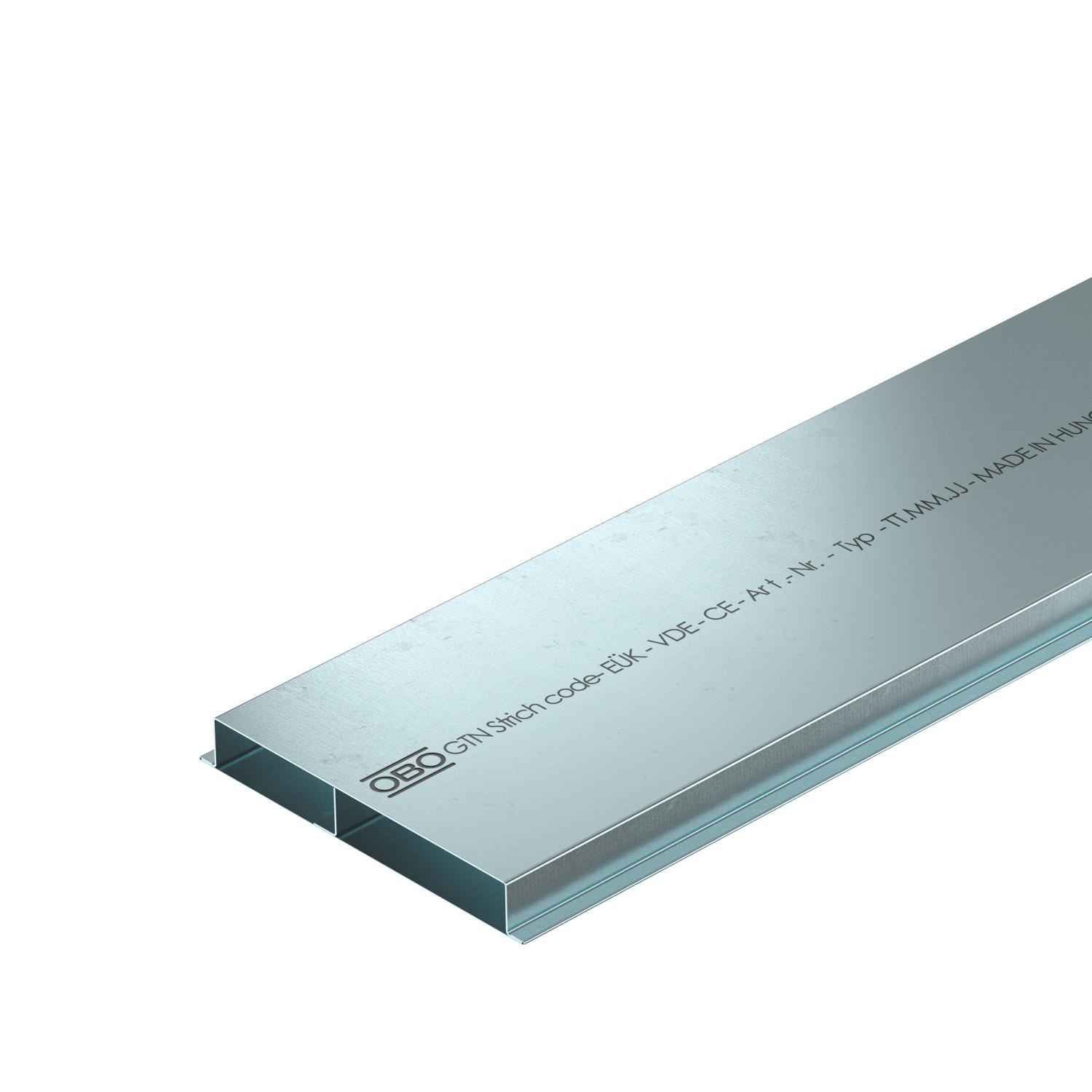

Underfloor installation duct, 2-compartment, trunking height 28 mm

Item no. 7400300 | EAN 4012195089254

2000 mm
2 St.
Product description
Product description
Underfloor installation duct for laying cables under the floor.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Application area Screed-covered
CO₂ Footprint (GWP) Cradle-to-Gate 7,606 kg CO₂e / 1 Meter
Cross-section, draw a 2028 mm²
Cross-section, draw b 2808 mm²
Decouplable no

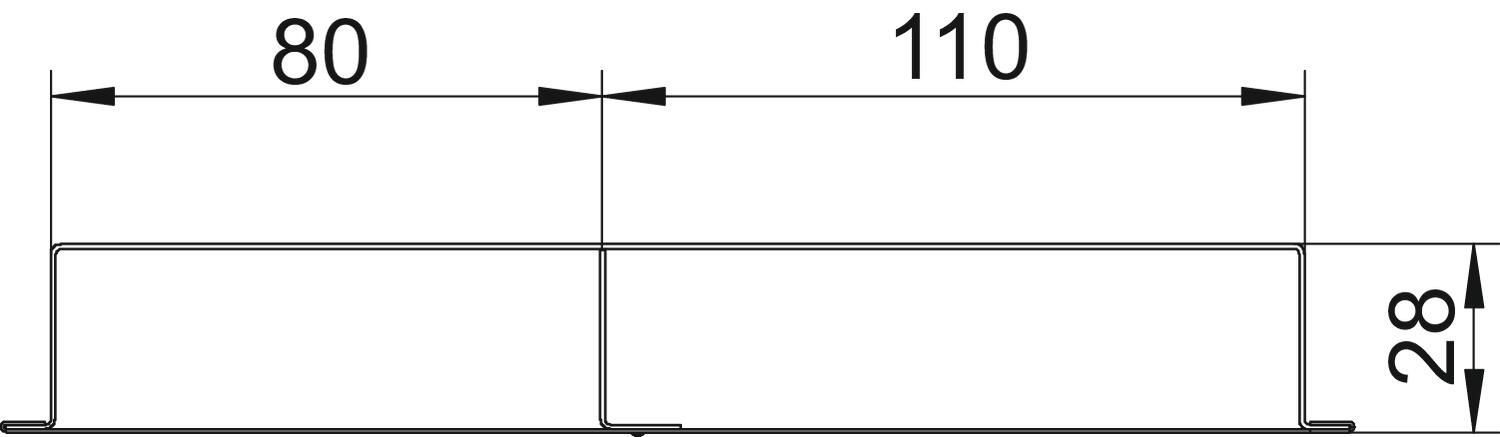

Dimension 2000x190x28
Dimension a 80 mm
Dimension b 110 mm
Dimension h 28 mm
Floor plate yes
Height 28 mm
Length 2000 mm
Material Steel
Number of compartments 2 St.
Number of fixed partitions 1
Removable cover no
Surface Strip galvanized
Usable cross-section 4836 mm²
Width 190 mm
All types

All types

Types Length Width Number of compartments Item no. Quantity SSU
S2 19028 2000 mm 190 mm 2 St. 7400300
2 m
S2 25028 2000 mm 250 mm 2 St. 7400312
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU

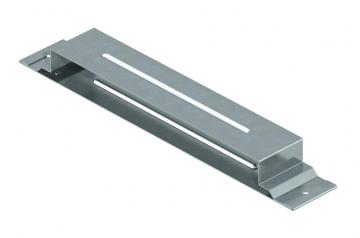

Connection shackle, height 28 mm Connection shackle, height 28 mm VL 19028E 7400960
1 piece
Downloads

Download

EU declaration of conformity S2 19028 / 7400300 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
