Note: This article is discontinued.
Underfloor installation duct, 2-compartment, trunking height 38 mm 2000 | 190 | 2
morepic-1 morepic-2

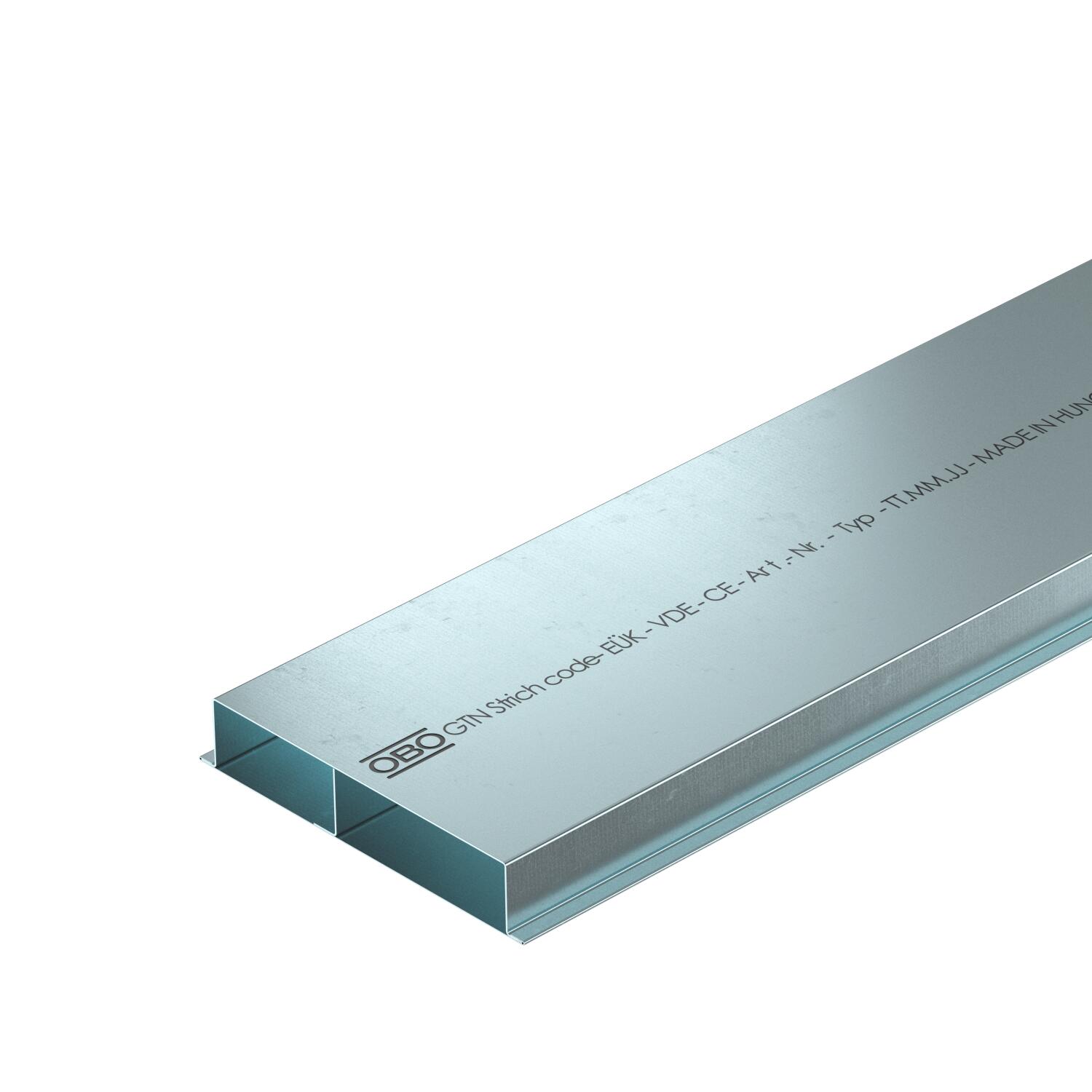

Underfloor installation duct, 2-compartment, trunking height 38 mm

Item no. 7400304 | EAN 4012195089261

2000 mm
2 St.
Product description
Product description
Underfloor installation duct for laying cables under the floor.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Application area Screed-covered
CO₂ Footprint (GWP) Cradle-to-Gate 8,142 kg CO₂e / 1 Meter
Cross-section, draw a 2808 mm²
Cross-section, draw b 3888 mm²
Decouplable no

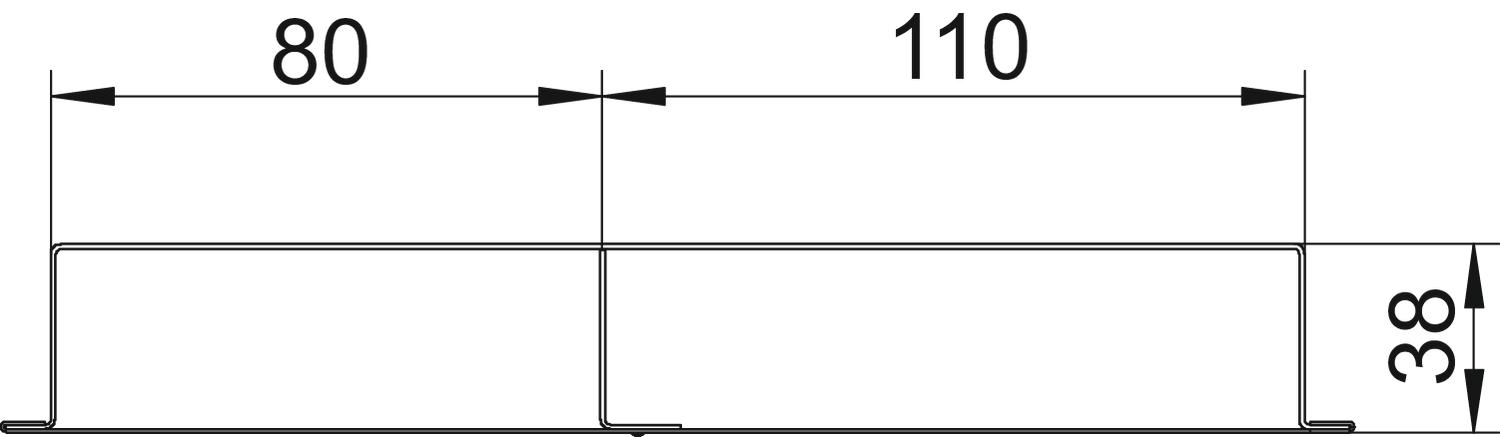

Dimension 2000x190x38
Dimension a 80 mm
Dimension b 110 mm
Dimension h 38 mm
Duct height, min. 38 mm
Floor plate yes
Height 38 mm
Length 2000 mm
Material Steel
Number of compartments 2 St.
Number of fixed partitions 1
Removable cover no
Surface Strip galvanized
Usable cross-section 6696 cm²
Width 190 mm
All types

All types

Types Length Width Number of compartments Item no. Quantity SSU
S2 19038 2000 mm 190 mm 2 St. 7400304
2 m
S2 25038 2000 mm 250 mm 2 St. 7400316
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU

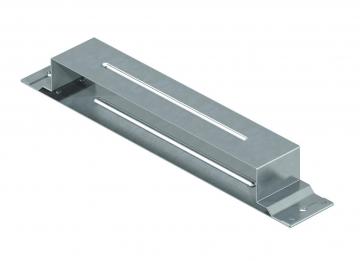

Connection shackle, height 38 mm Connection shackle, height 38 mm VL 19038E 7400962
1 piece
Downloads

Download

EU declaration of conformity S2 19038 / 7400304 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
