Note: This article is discontinued.

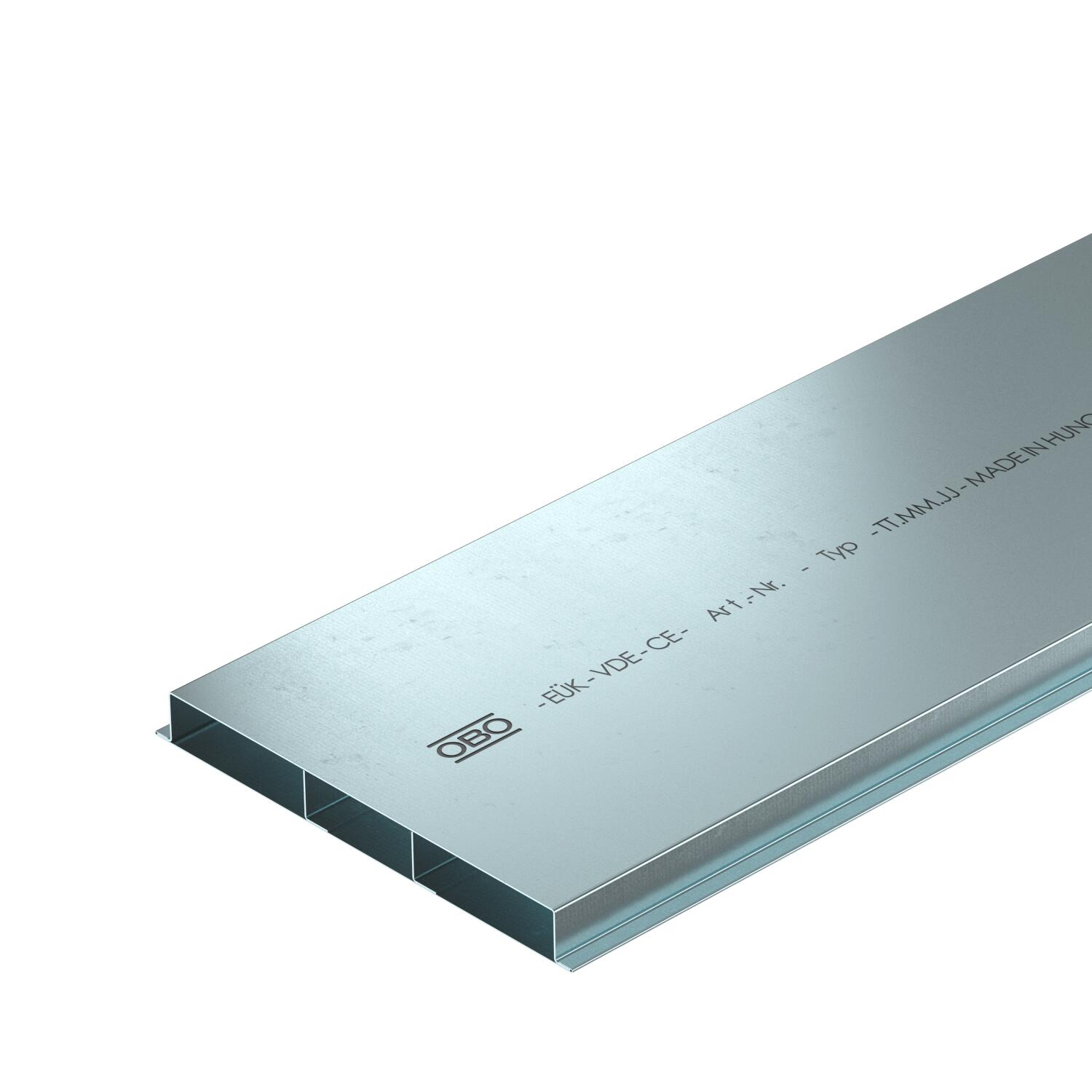

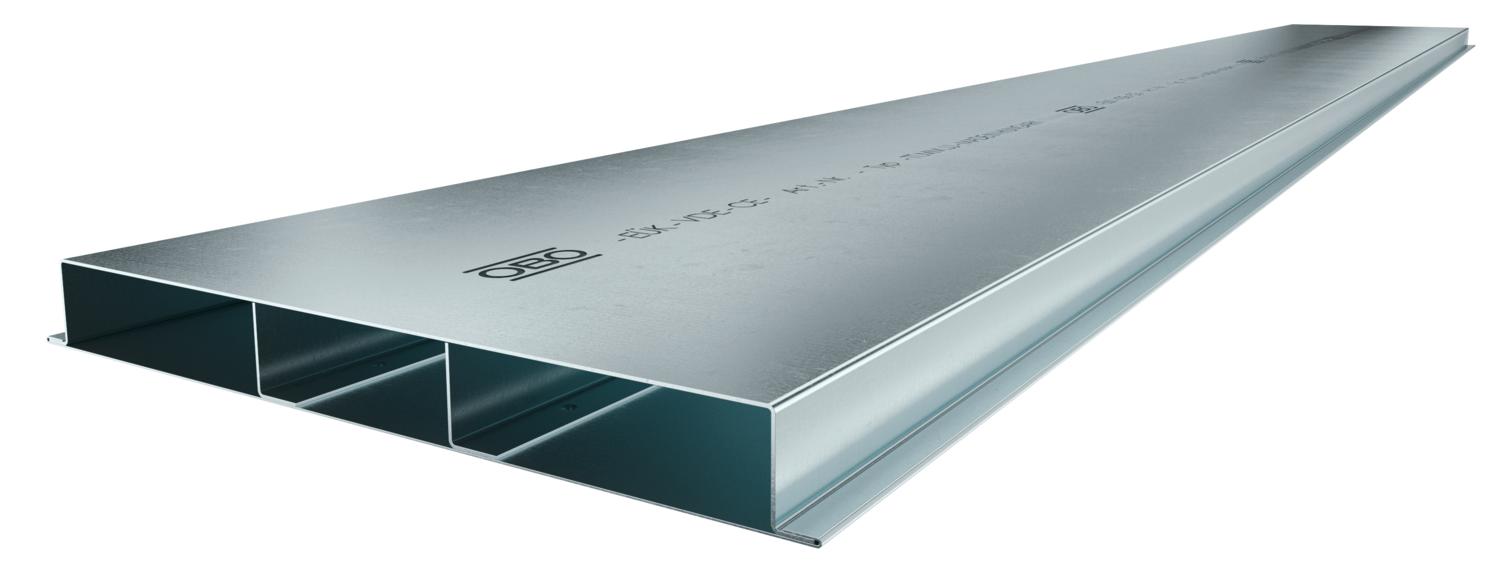

Underfloor installation duct, 3-compartment, duct height 28 mm
Item no. 7400324 | EAN 4012195089339
- Product description
-
Product descriptionUnderfloor installation duct for laying cables under the floor.
-
- Technical data
-
Technical data

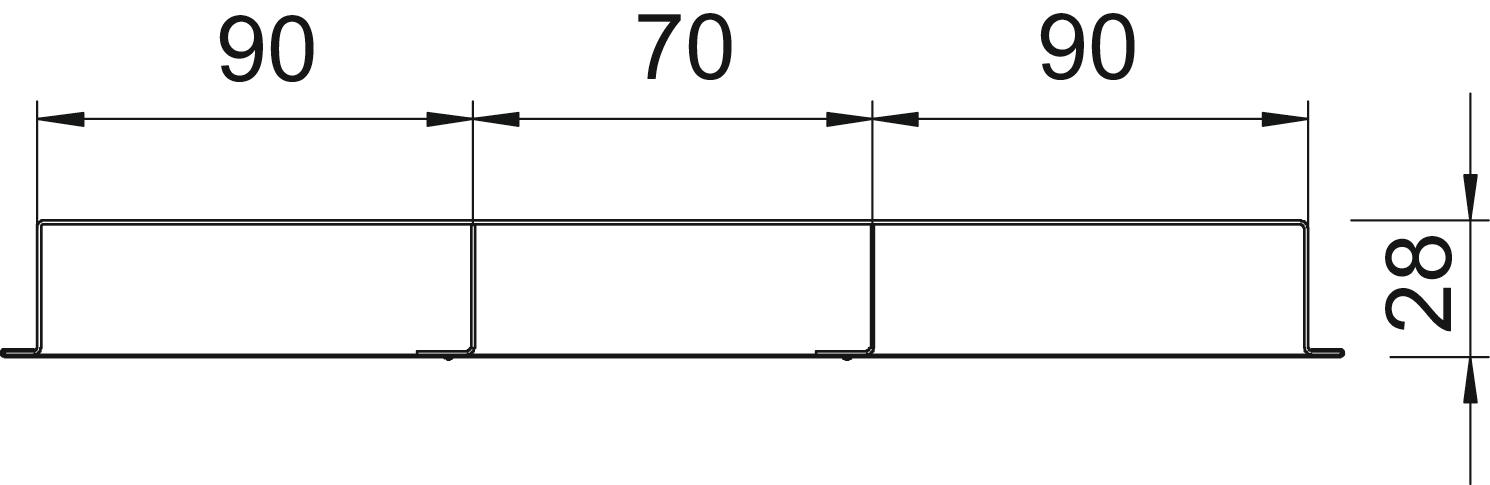

Application area Screed-covered CO₂ Footprint (GWP) Cradle-to-Gate 10,003 kg CO₂e / 1 Meter Cross-section, draw a 2288 mm² Cross-section, draw b 1794 mm² Decouplable no Dimension 2000x250x28 Dimension a 90 mm Dimension b 70 mm Dimension h 28 mm Duct height, min. 28 mm Floor plate yes Height 28 mm Length 2000 mm Material Steel Number of compartments 3 St. Number of fixed partitions 2 Removable cover no Surface Strip galvanized Usable cross-section 6370 mm² Width 250 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Connection shackle, height 28 mm
VL 25028E 7400966 1 piece - Downloads
-
Data sheet S3 25028 / 7400324 , 0.23MB , pdfEU declaration of conformity S3 25028 / 7400324 , 0.13MB , pdfUK Declaration of Conformity S3 25028 / 7400324 , 0.14MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfNo invitation to tender text is available for this product.
