Unperforated cover FS
Item no. 6052571 | EAN 4012196031696
- Product description
-
Product description
Cover for cable trays and mesh cable trays.
When using covers outdoors, additional measures against the influence of wind must be taken.
-
- Technical data
-
Technical data

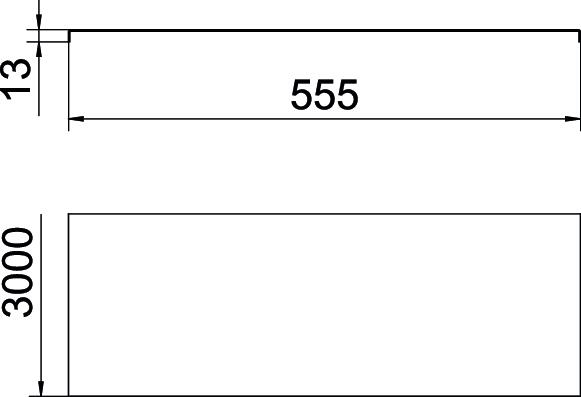

Dimension 550x3000 Dimension B 550 mm Dimension H 15 mm Fastening type Screw-on Height 35 mm Length 3000 mm Length 10 ft Maintain electrical functions no Material Steel Plate thickness 0,05 in Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Surface Strip galvanized Width 550 mm Width 22 in - All types
-
All types
- Downloads
-
Data sheet DRLU 550 FS / 6052571 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DRLU 550 FS / 6052571 , 0.10MB , pdfUK Declaration of Conformity DRLU 550 FS / 6052571 , 0.14MB , pdfREACH Declaration of conformity DRLU 550 FS / 6052571 , 0.12MB , pdfRoHS Declaration of conformity DRLU 550 FS / 6052571 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
