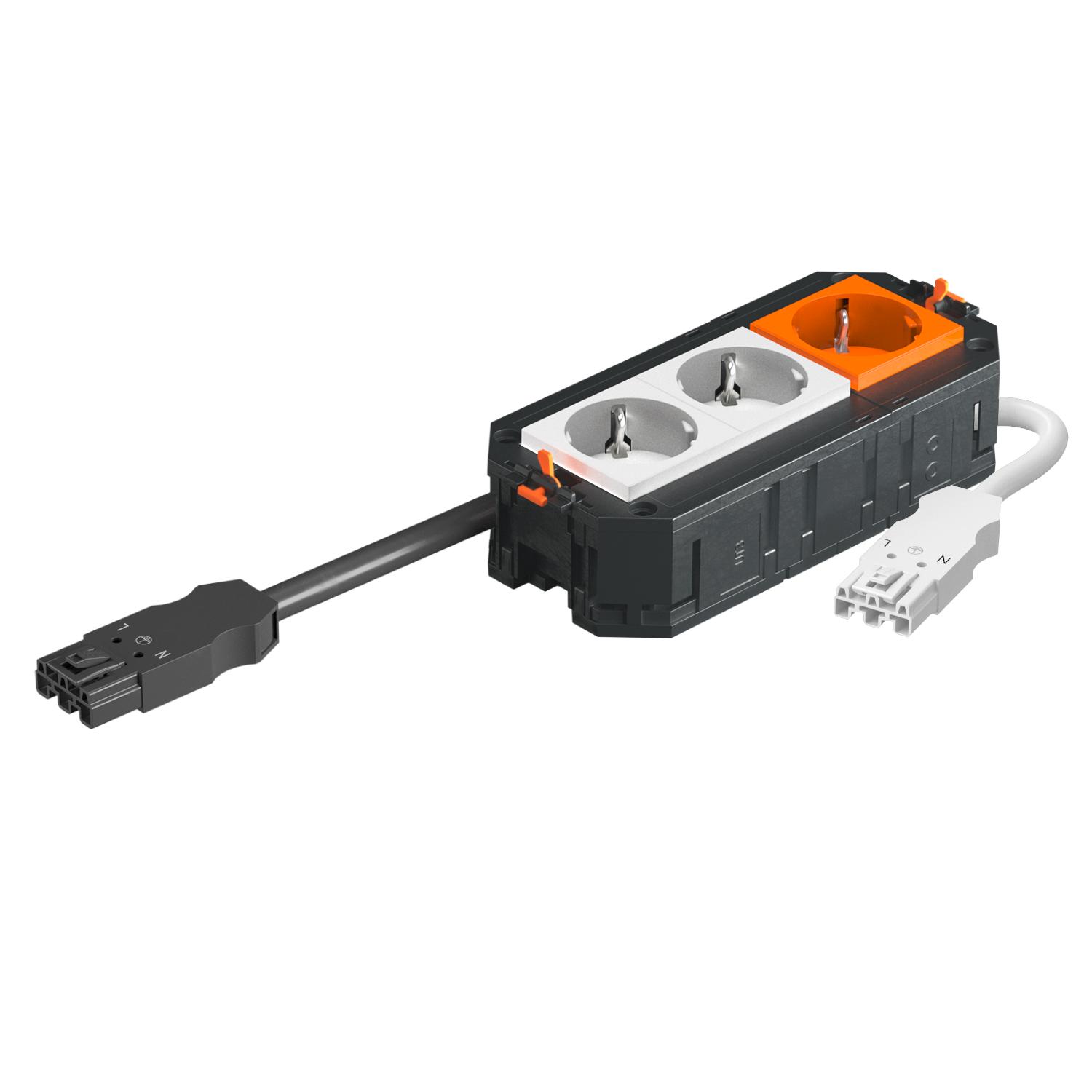

UTC3 W with 2+1 protective contact sockets, white and orange
Item no. 7404609 | EAN 4012196687718
- Product description
-
Product descriptionThe ready-for-connection UTC3 universal support possesses 2 pre-installed 33° protective contact sockets in white of 16 A and one pre-installed 33° protective contact socket in orange of 16 A. Suitable for VL connection cables and device installation units of nominal size 2, 4, R4, 6 and R7.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC3 universal support has 2 pre-installed 33° protective contact sockets in white of 16 A and one pre-installed 33° protective contact socket in orange of 16 A.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI
- Technical data
-
Technical data

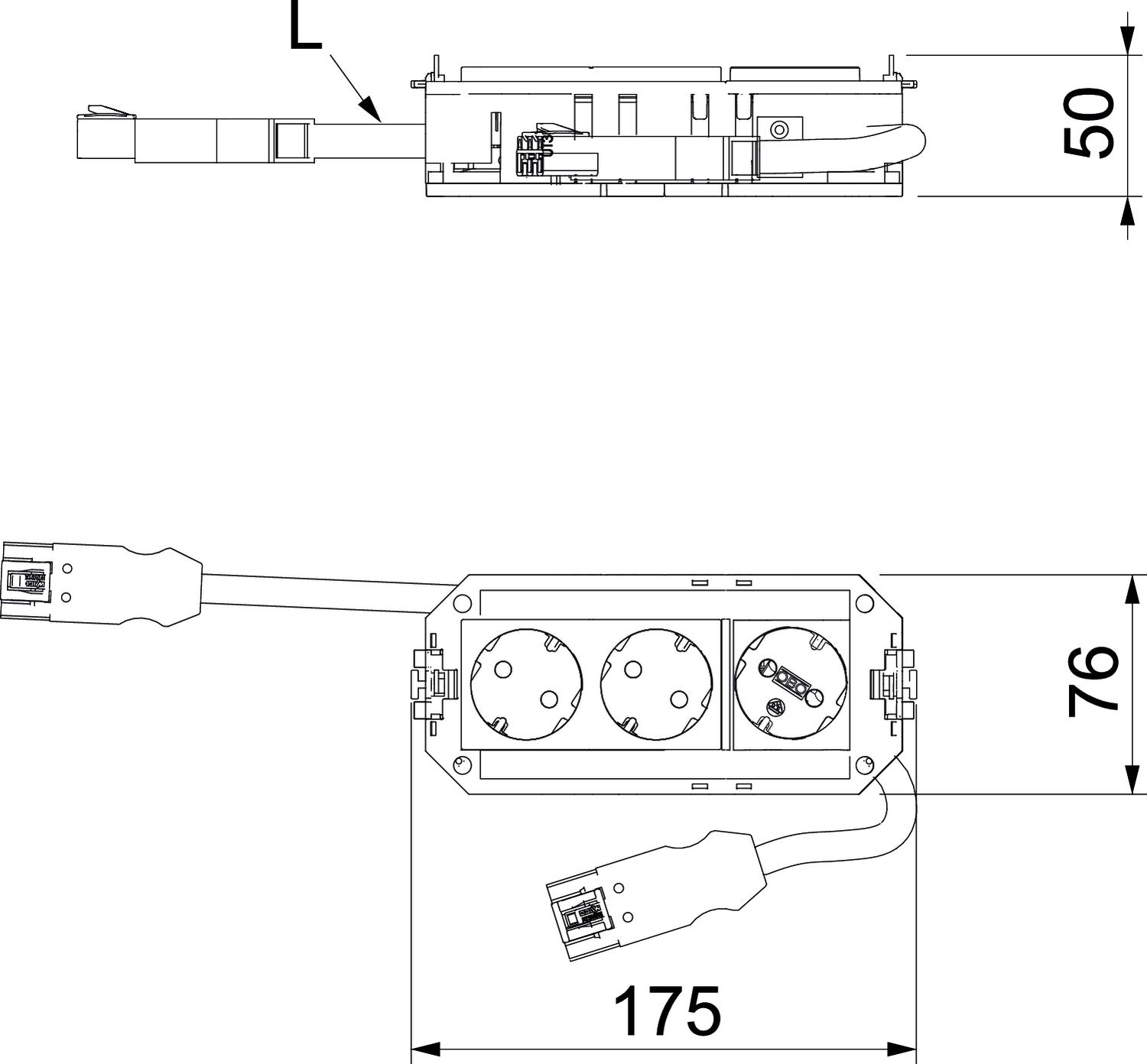

Cable length 300 mm Circuit 2 Connection cable, halogen-free yes Dimension 165x76x45 Height 60 mm Length 175 mm Line cross-section 2,5 mm² Material Polyamide Number of installable devices 3 Plug connector system, system-specific yes Plug-in system WINSTA® MIDI Surge protection no Version for Double pure white/single pure orange Width 76 mm - All types
- Downloads
-
Data sheet UTC3 W W2OR1 / 7404609 , 0.18MB , pdfEU declaration of conformity UTC3 W W2OR1 / 7404609 , 0.11MB , pdf
