UTC4 W with 2 protective contact sockets, white

Item no. 7404615 | EAN 4012196687763

7404615 / UTC4 W W2
218 mm
Product description
Product description

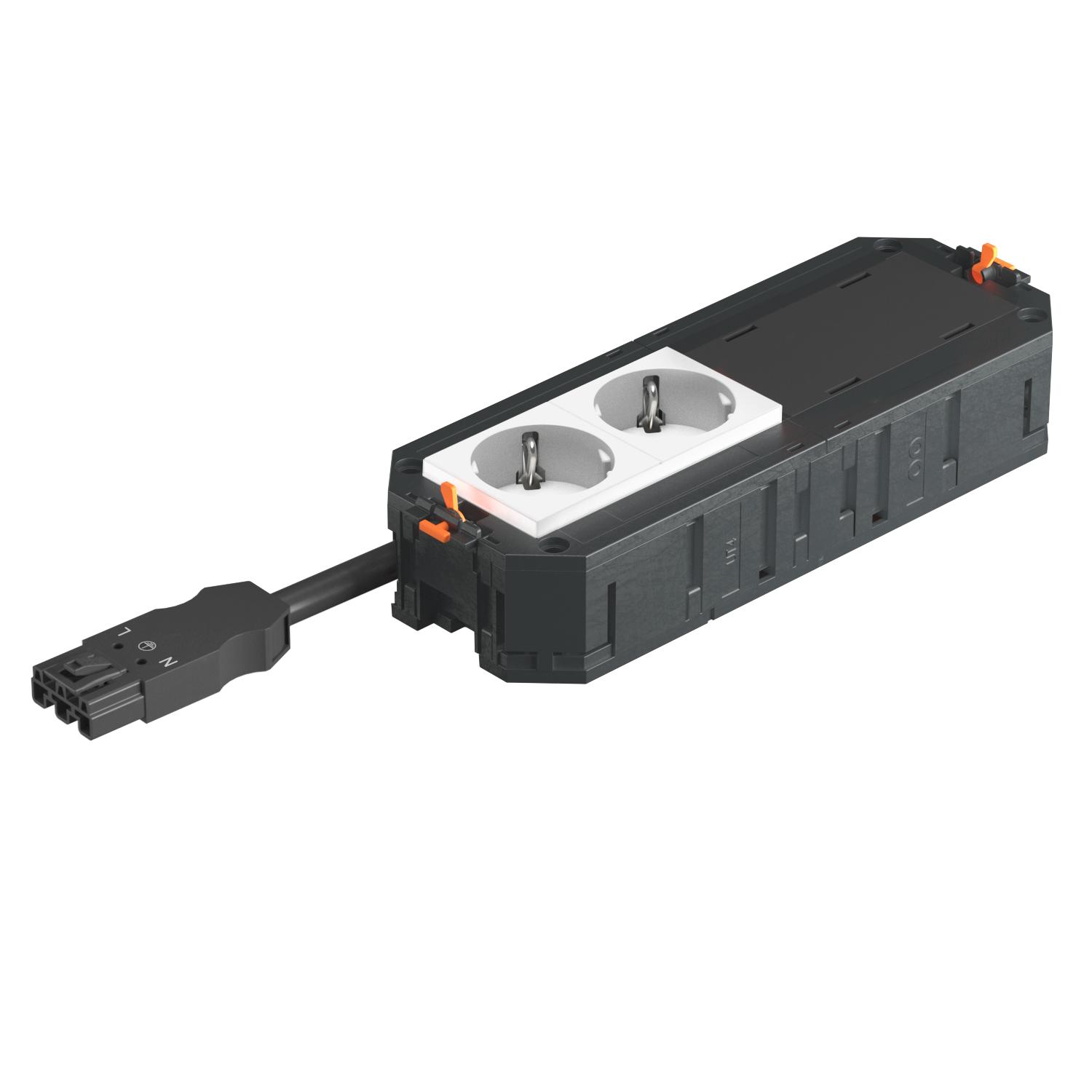

The ready-for-connection UTC4 universal support has 2 pre-installed 33° protective contact sockets in white and 2 blanking covers for retroinstallation of 2 installation devices of the Modul 45 series. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support has 2 pre-installed 33° protective contact sockets in white and 2 blanking covers for retroinstallation of 2 installation devices of the Modul 45 series.


PVC connection cable with connector, 3-pin, type WINSTA® MIDI
Technical data

Technical data

Cable length 300 mm
Circuit 1
Connection cable, halogen-free yes

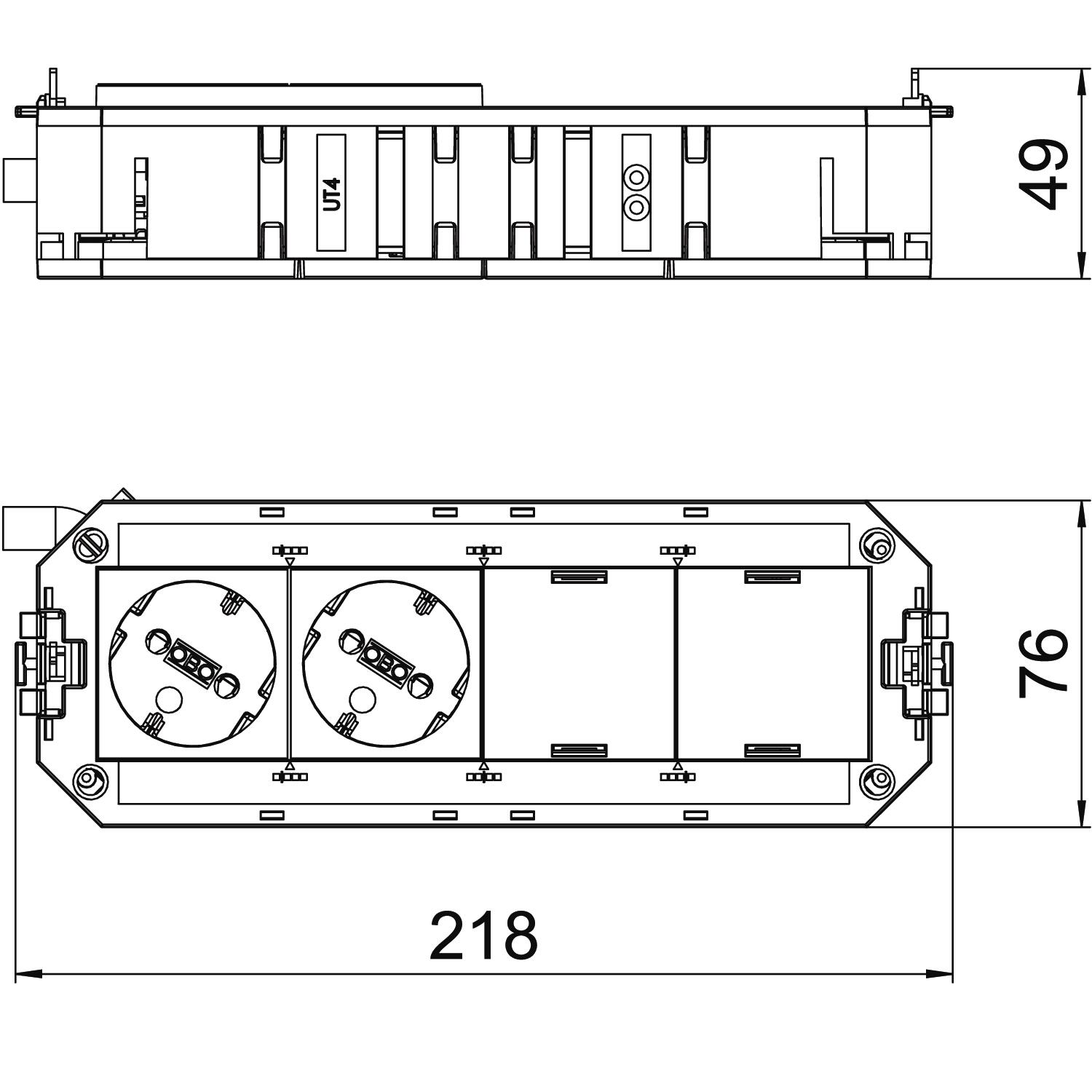

Dimension 208x76x45
Height 60 mm
Length 218 mm
Line cross-section 2,5 mm²
Material Polyamide
Number of installable devices 4
Plug connector system, system-specific yes
Plug-in system WINSTA® MIDI
Surge protection no
Version for Double pure white
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC4 W W2 218 mm 7404615
1 piece
