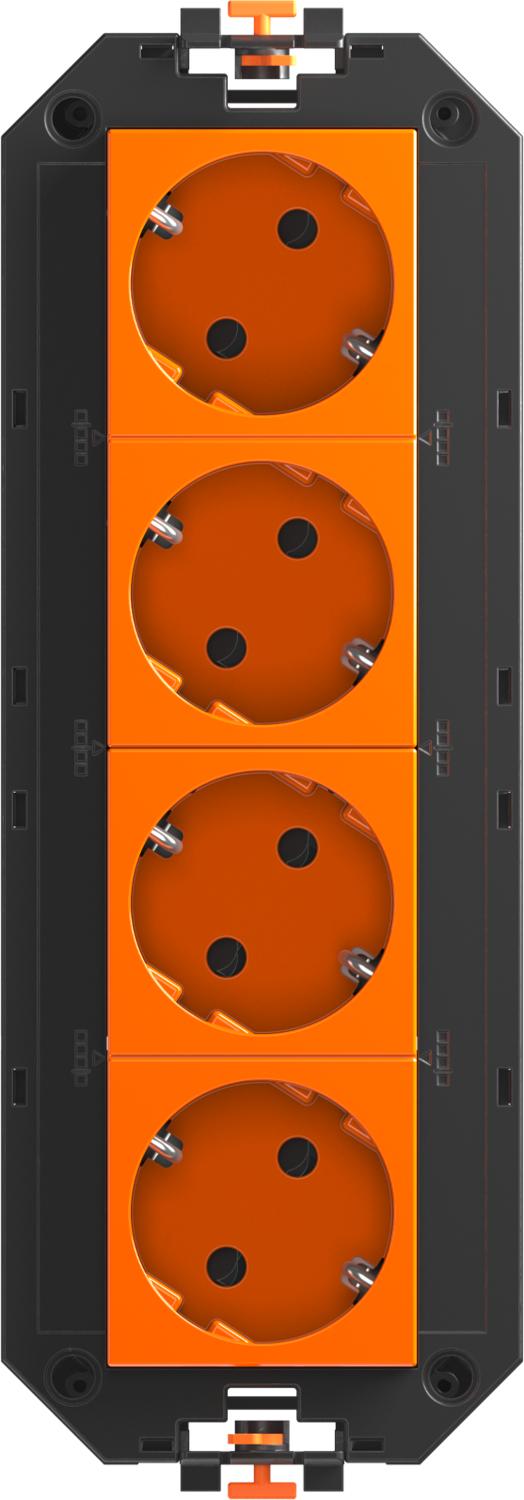

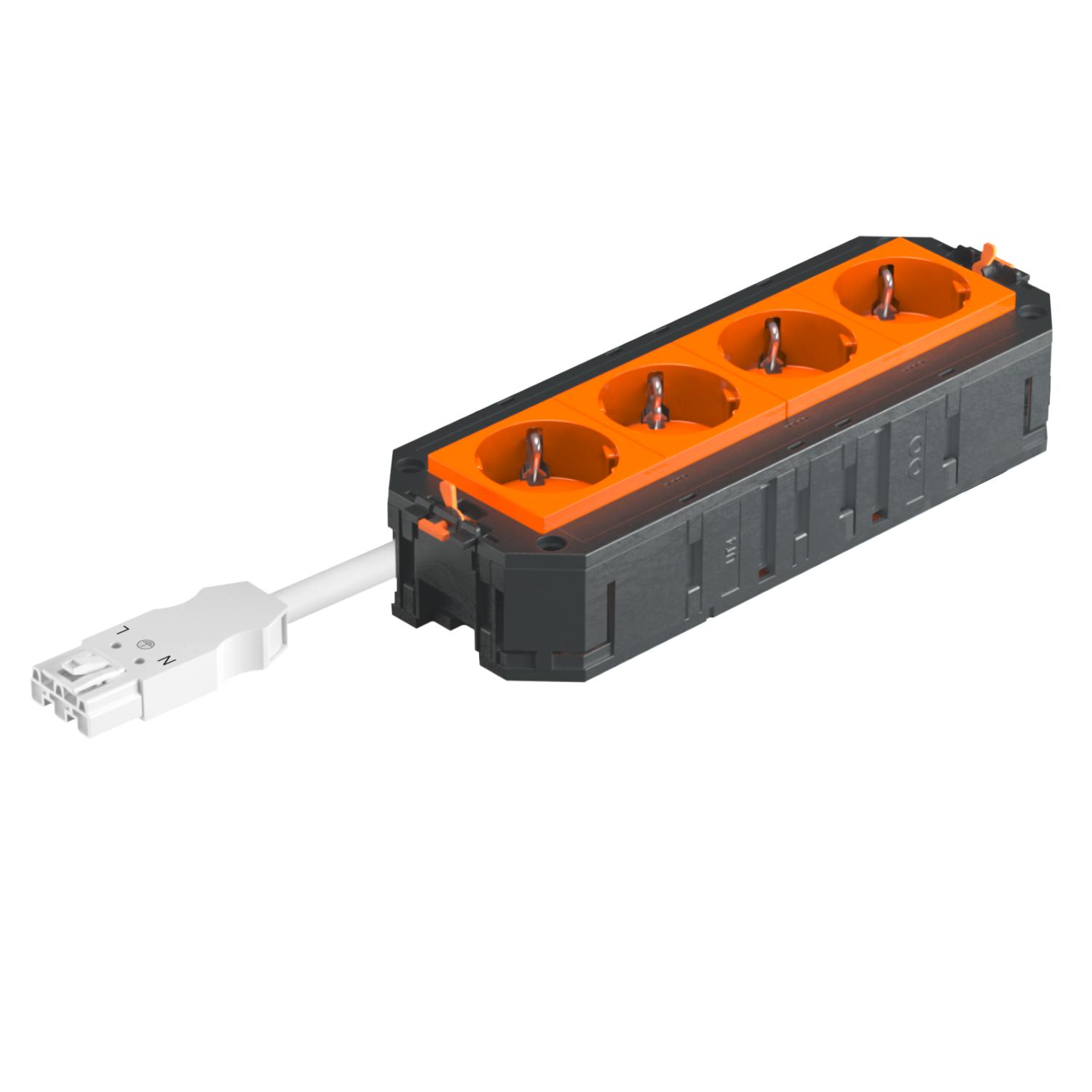

UTC4 W with 4 protective contact sockets, orange
Item no. 7404614 | EAN 4012196687756
- Product description
-
Product descriptionThe ready-for-connection UTC4 universal support possesses 4 pre-installed 33° protective contact sockets in orange, 250 V~, 16 A. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support has 4 pre-installed 33° protective contact sockets in orange, 250 V~ 16 A.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI
- Technical data
-
Technical data

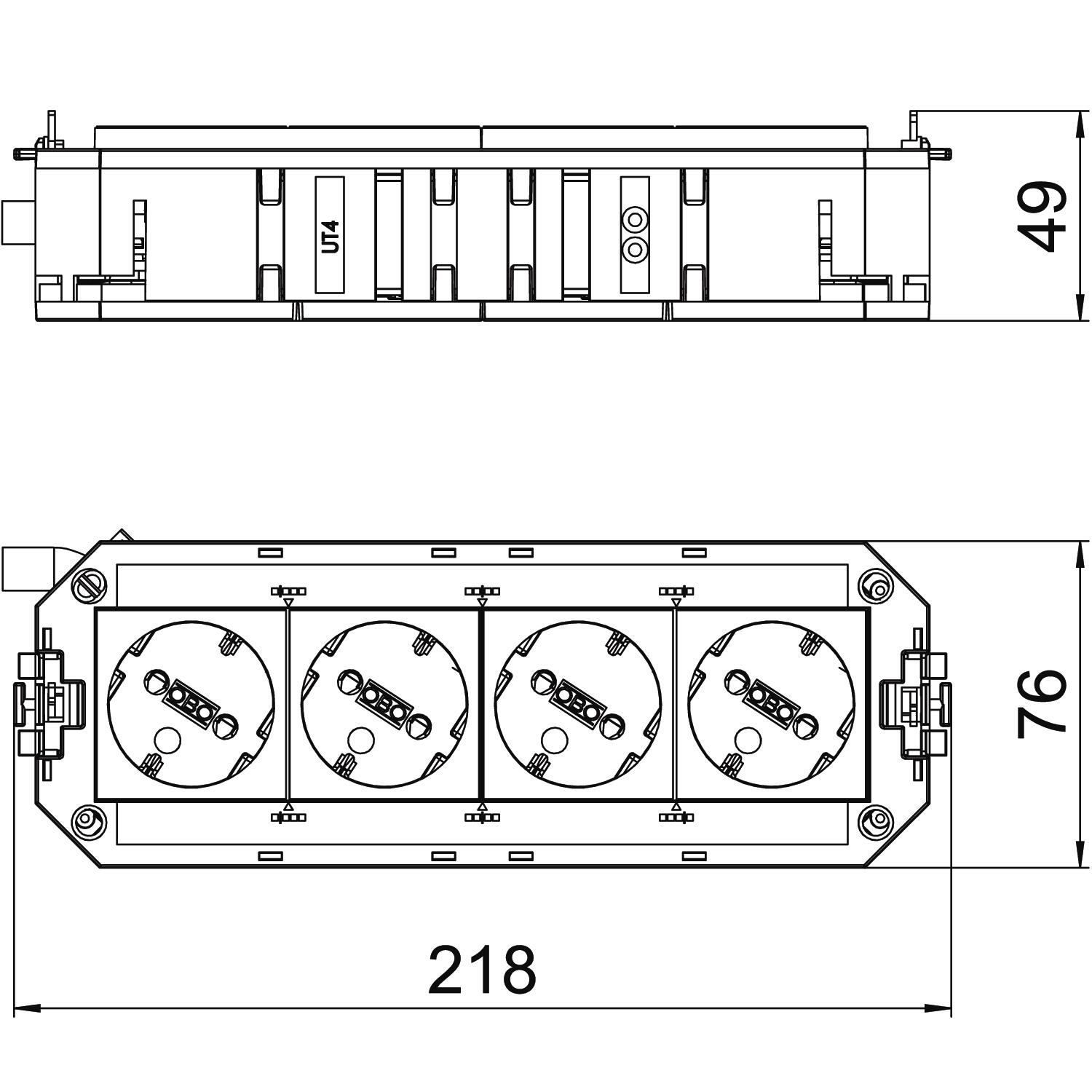

Cable length 300 mm Circuit 1 Connection cable, halogen-free yes Dimension 208x76x45 Height 60 mm Length 218 mm Line cross-section 2,5 mm² Material Polyamide Number of installable devices 4 Plug connector system, system-specific yes Plug-in system WINSTA® MIDI Surge protection no Version for 4x pure orange Width 76 mm - All types
- Downloads
-
Data sheet UTC4 W OR4 / 7404614 , 0.20MB , pdfEU declaration of conformity UTC4 W OR4 / 7404614 , 0.11MB , pdf
