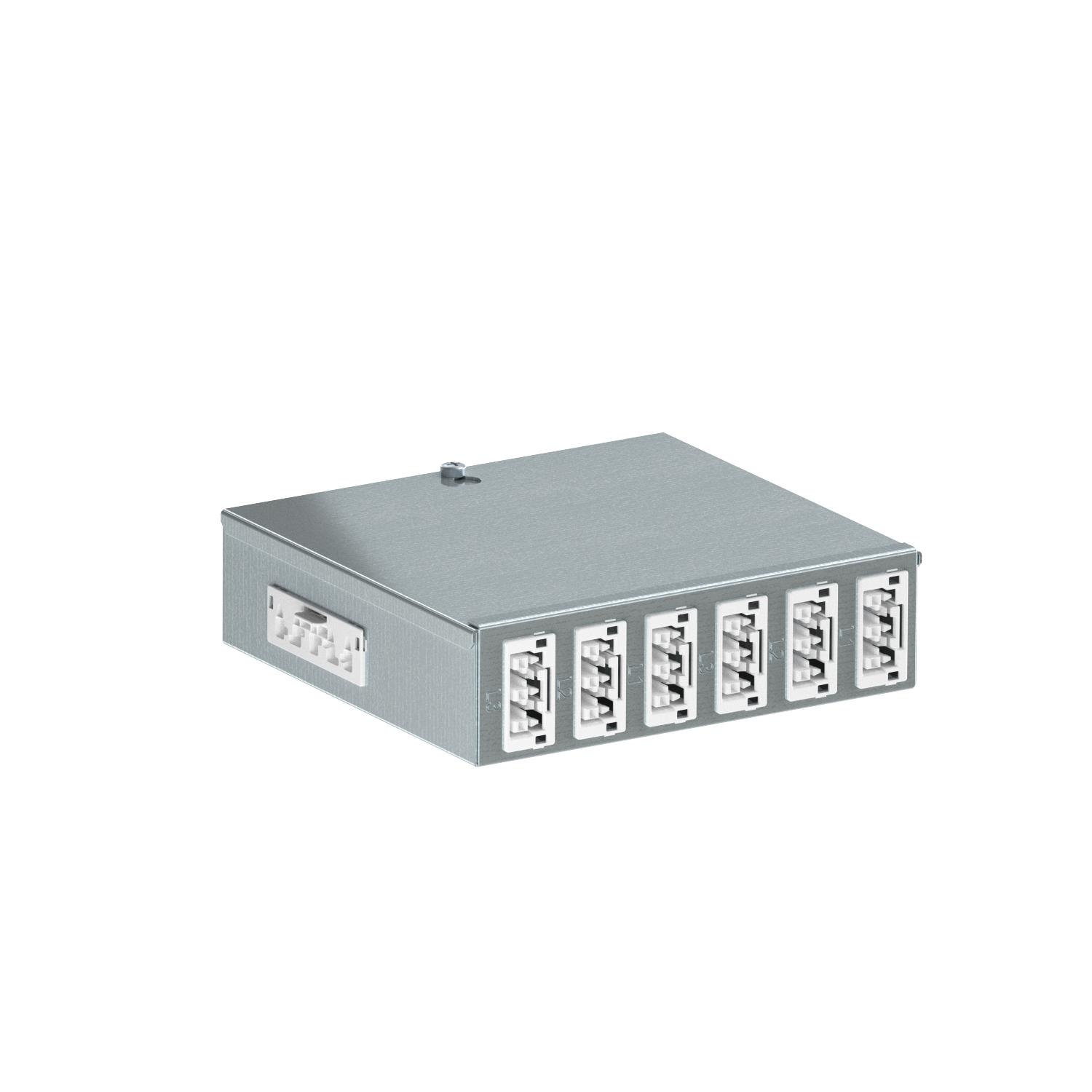

UVS energy distributor with plug connection, special circuit
Item no. 6107988 | EAN 4012196688180
- Product description
-
Product descriptionInput: 1x three-phase circuit using a self-locking plug connector, 5-pin, type WINSTA® MIDI (connector part).
Output: 6 self-locking plug connectors, 3-pin, in white, 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
Input: 1x three-phase circuit using a self-locking plug connector, 5-pin, type WINSTA® MIDI (connector part).
Output: 6 self-locking plug connectors, 3-pin, in white, 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
-
- Technical data
-
Technical data

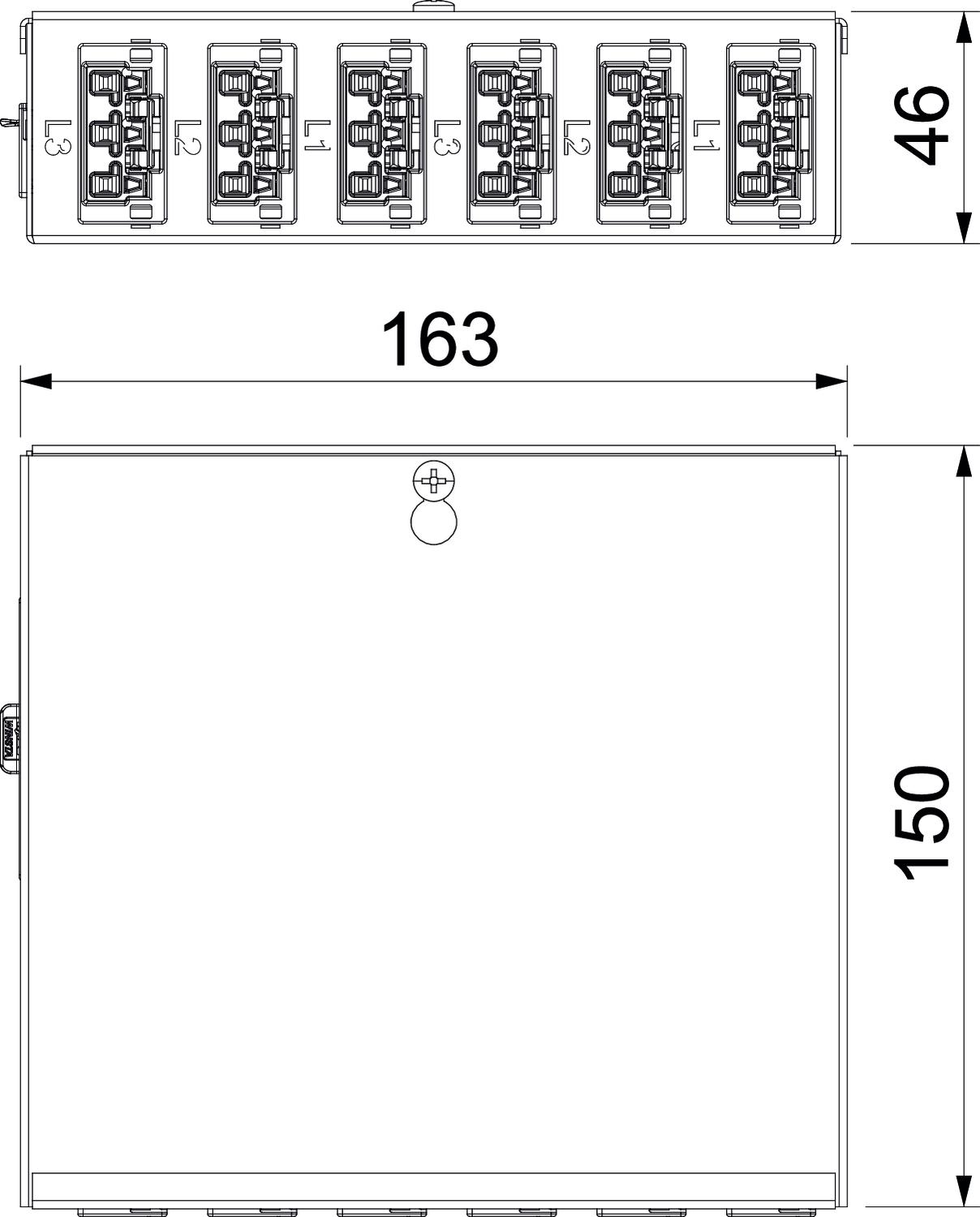

Colour of the plug connector system White Connection type Plug-in system Cross-section of the connection cable 4 mm² Dimension 150x163x46 Height 46 mm Input 5-pole Length 196 mm Material Steel No. of outlets 6 Number of input circuits 1 Plug connector system, system-specific yes Width 149 mm - All types
- Downloads
-
Data sheet UVS-WIN 6W / 6107988 , 0.25MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity UVS-WIN 6W / 6107988 , 0.13MB , pdfNo invitation to tender text is available for this product.
