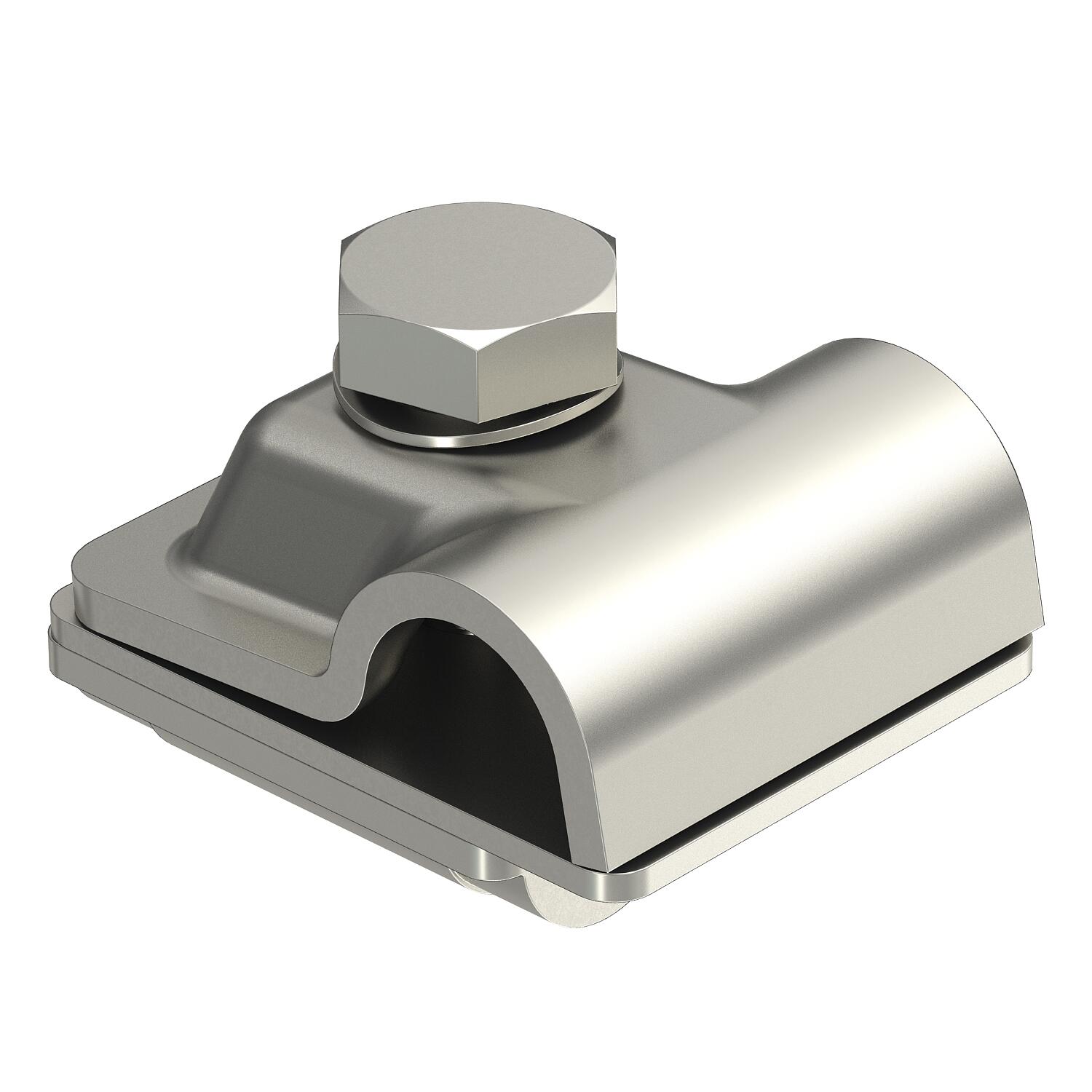

Vario quick connector Rd 8-10x16

Item no. 5311590 | EAN 4012195925446

5311590 / 249 8-10X16 VA
8-10x16 mm
Product description

Product description

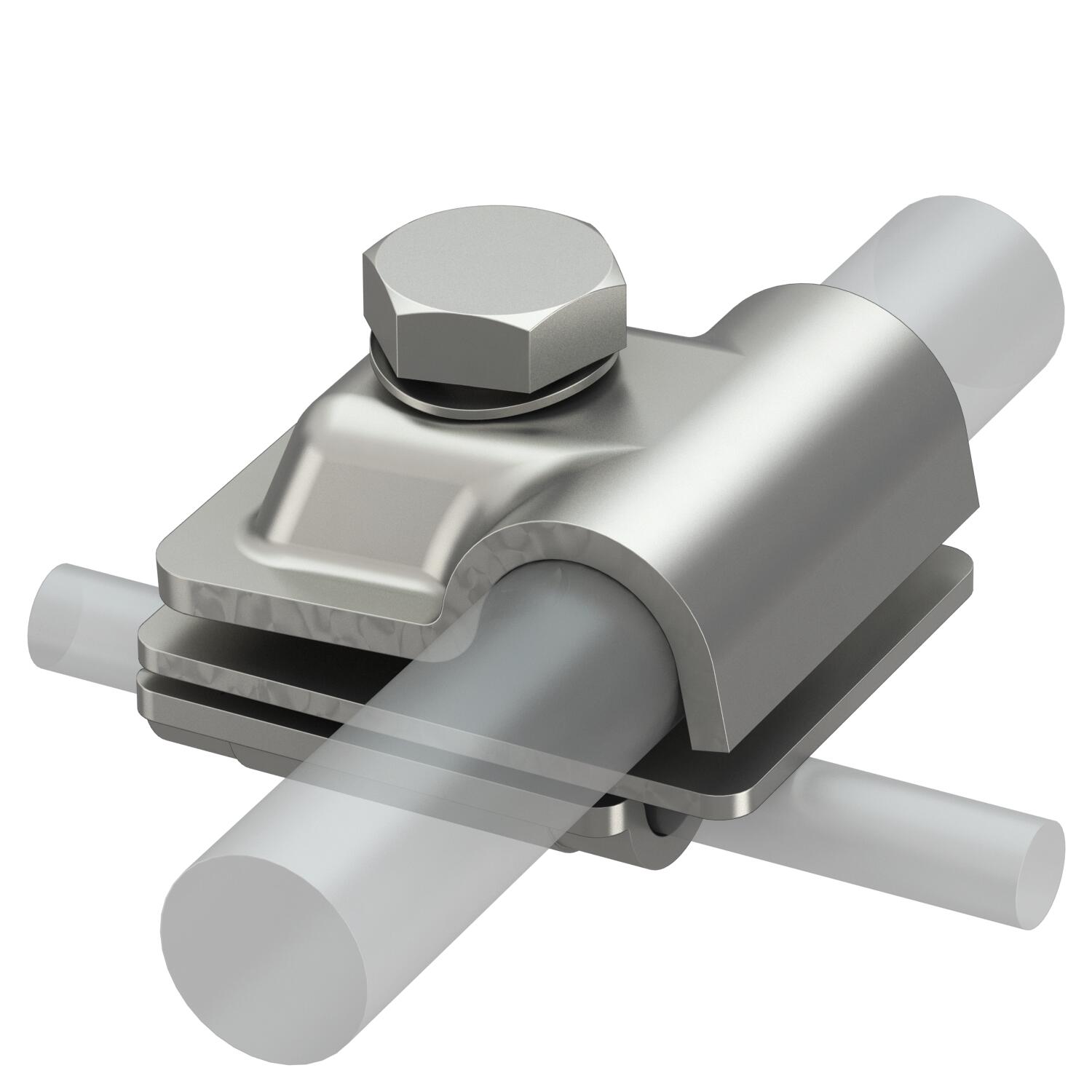

• For T, cross-over and parallel connections with adapter plates

• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel

• With sprung washer to DIN 137

• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

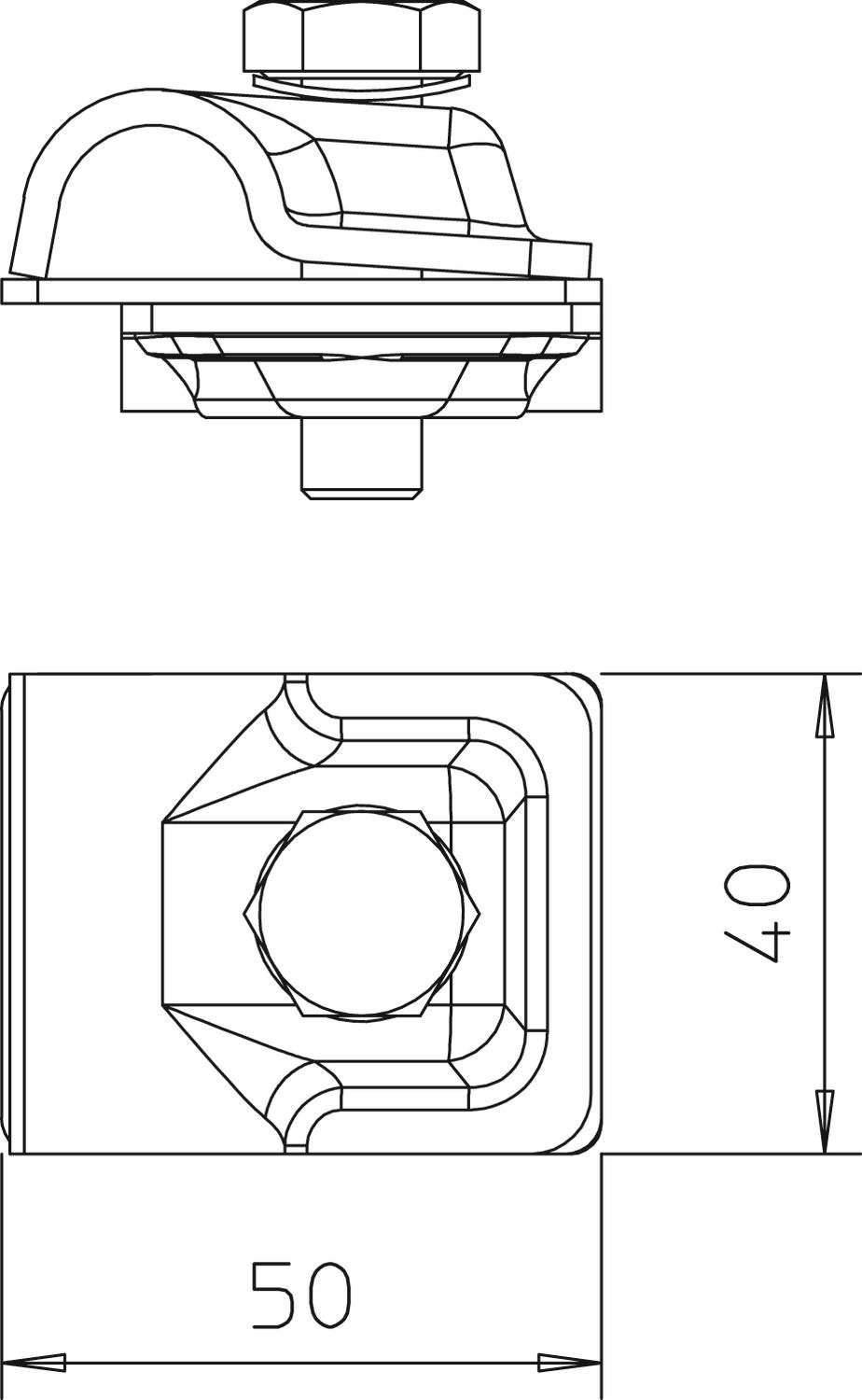

Dimension 50x40mm
Dimension A 40 mm
Fit 8-10x16 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Stainless steel
Round conductor diameter, conductor 1, max. 10 mm
Round conductor diameter, conductor 1, min. 8 mm
Round conductor diameter, conductor 2, max. 16 mm
Short-circuit current (50 HZ)(1 s;≤300°C) 7,9
Suitable for connection Round conductor Rd 8-10 / Rd 16
Type of connector Multipurpose connection clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
249 8-10X16 VA 8-10x16 mm 5311590
10 piece
