Wiring trunking, type LK4 60025

Item no. 6178028 | EAN 4012196001255

6178028 / LK4 60025
2000 mm
25 mm
60 mm
Base perforation
Stone grey; RAL 7030
Product description
Product description

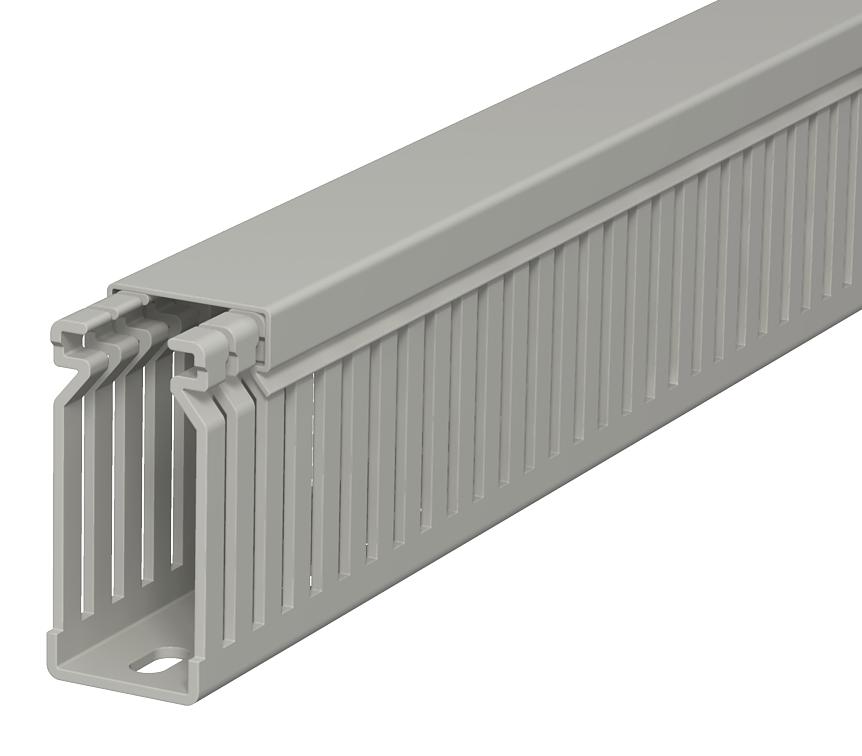

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Stone grey; RAL 7030
CO₂ Footprint (GWP) Cradle-to-Gate 1,027 kg CO₂e / 1 Meter
Creepage current-resistant yes

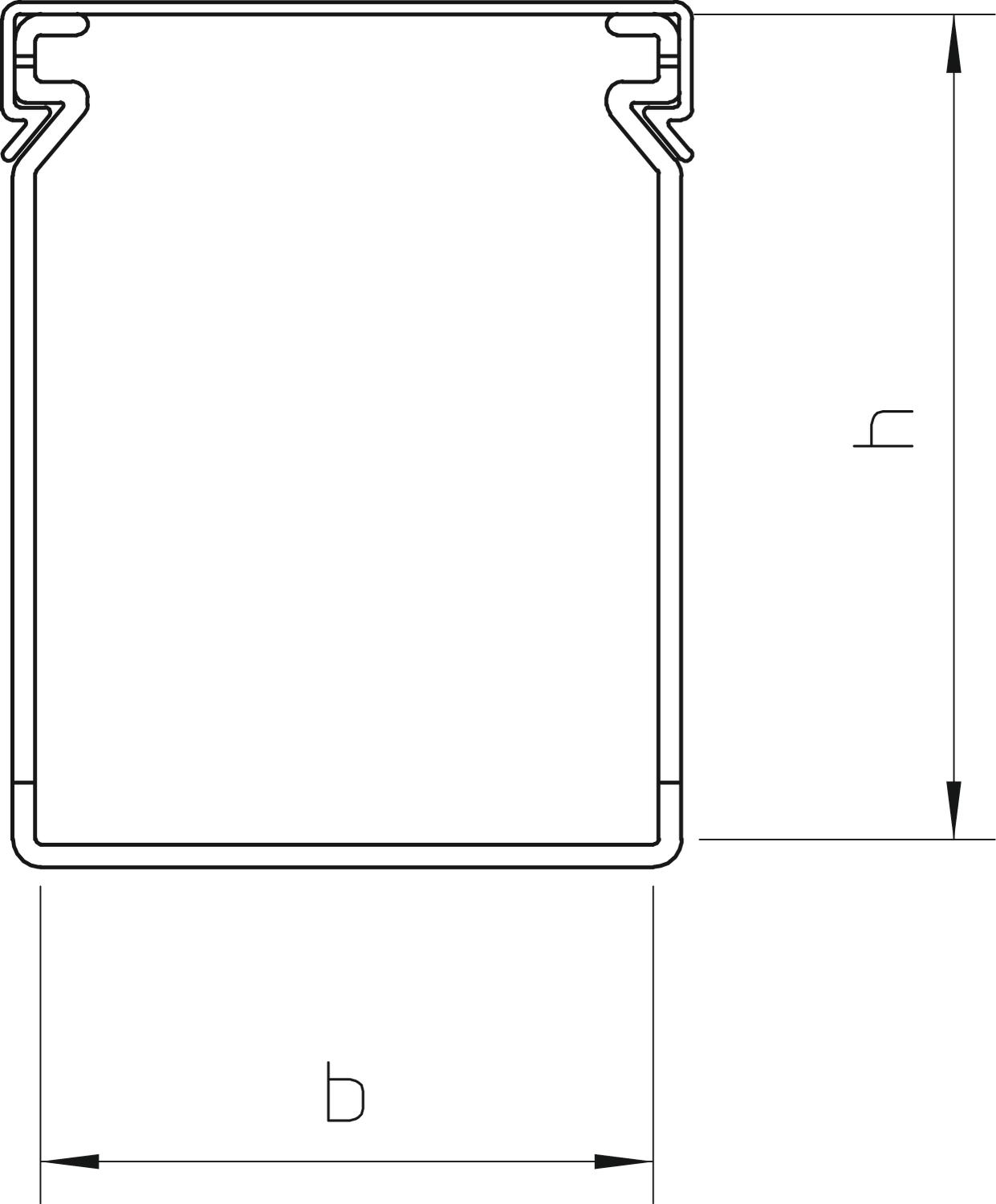

Dimension 60x25x2000
Fastening type Base perforation
Flexible no
Halogen-free no
Height 60 mm
Length 2000 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Self-extinguishing yes
Side wall version Slotted
Slot spacing 10 mm
Slot width 4 mm
Usable cross-section 13,56 cm²
Width 25 mm
With cover yes
All types

All types

Types Length Width Height Fastening type Colour Item no. Quantity SSU
LK4 60025 2000 mm 25 mm 60 mm Base perforation Stone grey; RAL 7030 6178028
2 m
