Wiring trunking, type LK4 N 60015 2000 | 15 | 60 | Base perforation | Stone grey; RAL 7030

Wiring trunking, type LK4 N 60015

Item no. 6178201 | EAN 4012196004850

Item no. / Types	6178201 / LK4 N 60015

Length	2000 mm

Width	15 mm

Height	60 mm

Fastening type	Base perforation

Colour	Stone grey; RAL 7030

Product description

Product description

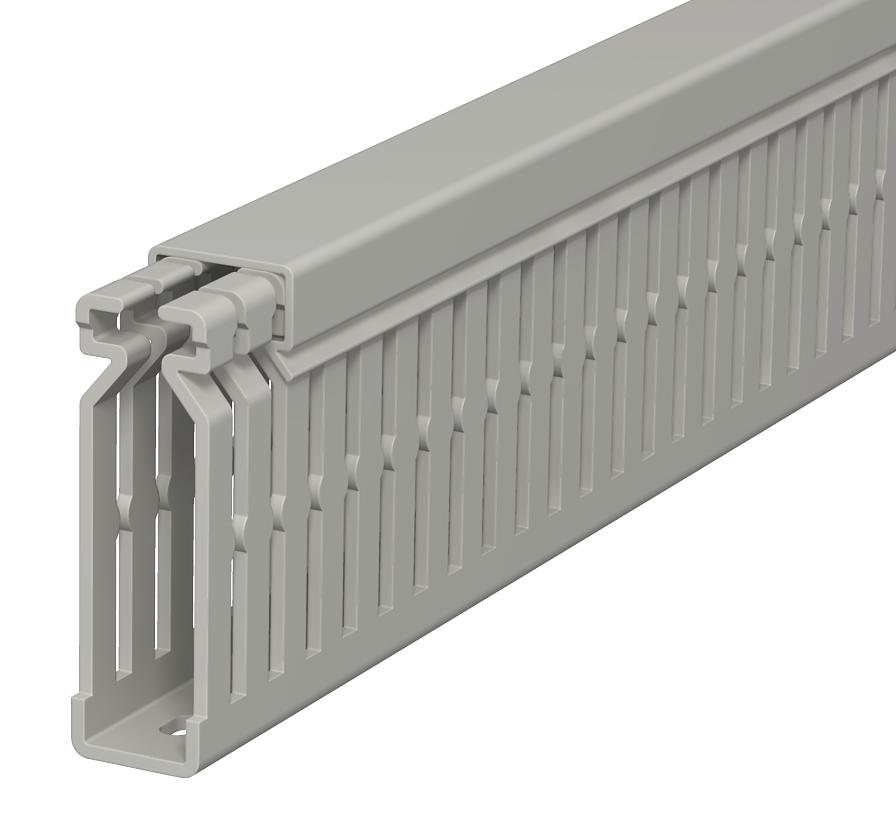

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.

Technical data

Technical data

Colour	Stone grey; RAL 7030
CO₂ Footprint (GWP) Cradle-to-Gate	0,715 kg CO₂e / 1 Meter
Creepage current-resistant	yes

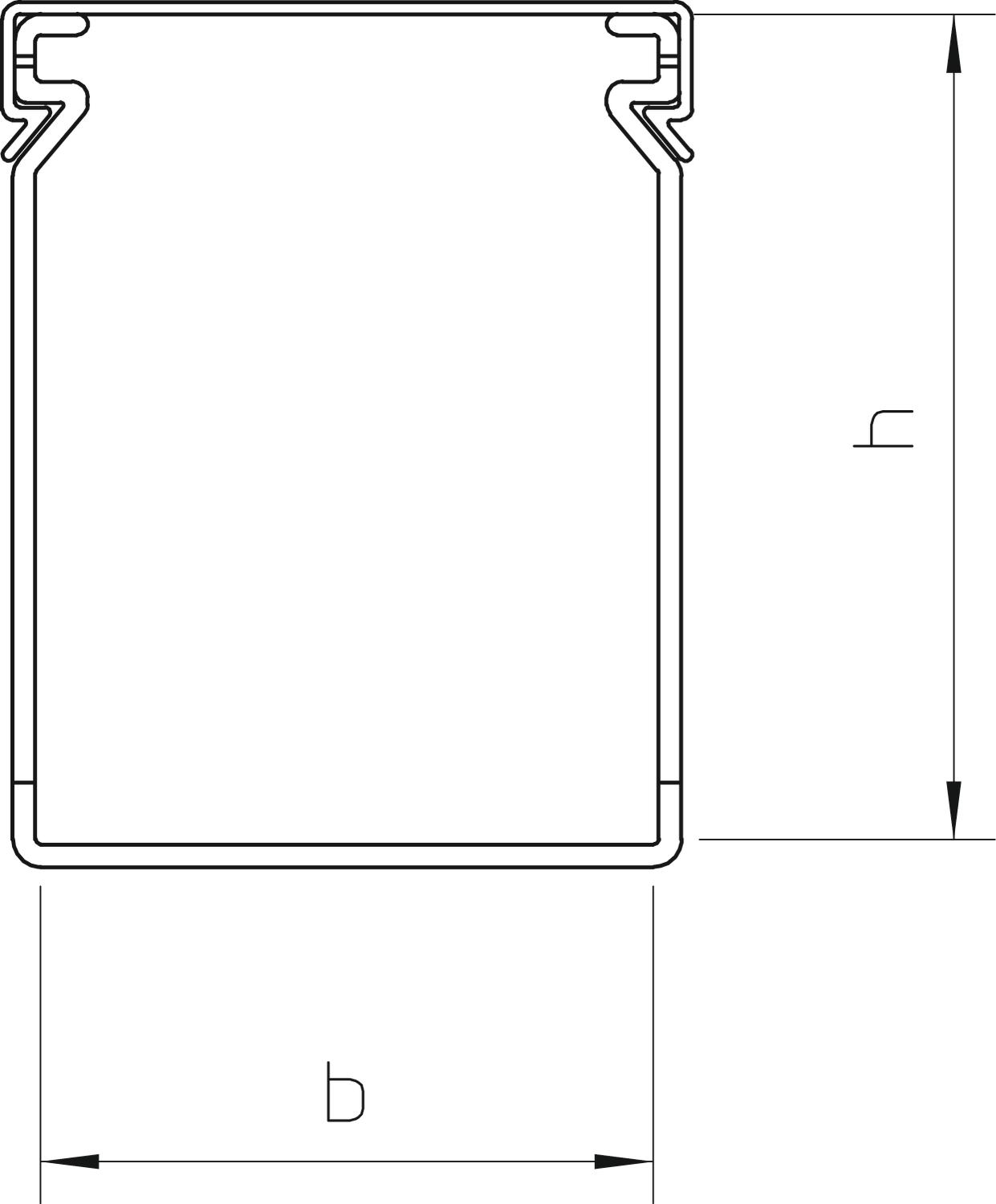

Dimension	60x15x2000
Fastening type	Base perforation
Flexible	no
Halogen-free	no
Height	60 mm
Length	2000 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	12,5 mm
Slot width	5 mm
Usable cross-section	8,09 cm²
Width	15 mm
With cover	yes
