水磨石外壳,用于标称尺寸 4 的可平整安装底盒

项目编号 7404380 | EAN码 4012196633937

产品描述
产品描述

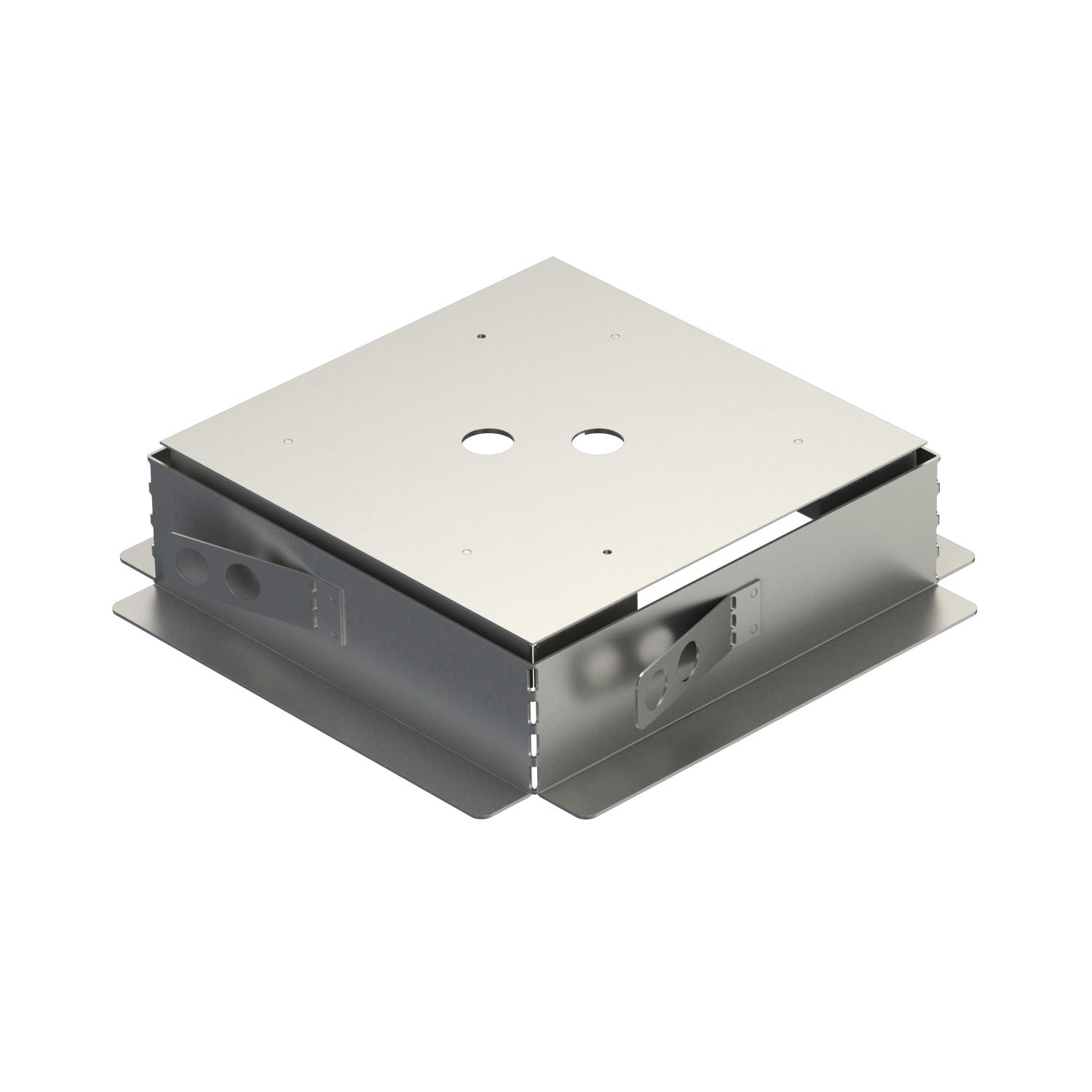

Lined body, suitable for polishing, for the direct and jointless installation of height-adjustable cassettes, nominal size 4, into surface-finished screeds/terrazzo floorings. The casing is laid floatingly onto underfloor boxes with mounting lids of nominal size 4, closing the gaps between underfloor box and cassette frame. The protection cover made from aluminium sheet is put into the cassette frame as a dummy before the screed work is done and can be polished over with the screed or terrazzo.
  • 欧共体,根据欧共体指令的欧共体(EC)符合性声明
技术资料

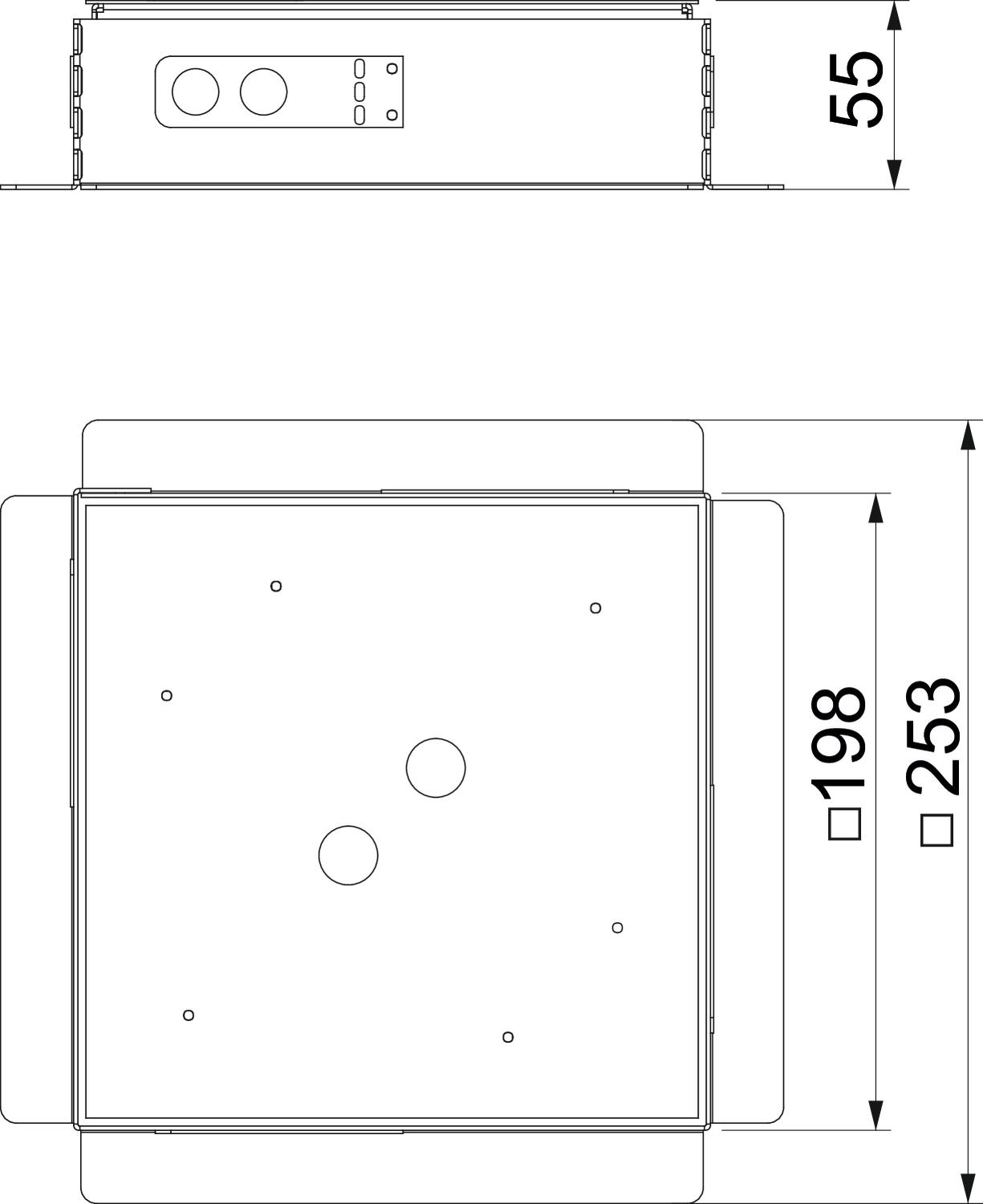

尺寸

宽度 198 mm
尺寸 253x253x55
尺寸 a 198 mm
尺寸 A 253 mm
尺寸 h 55 mm
最大地板高度 200 mm
最小地板高度 130 mm
材料
表面 带钢镀锌
设备安装单元的标称尺寸 4
长度 198 mm
高度 55 mm
所有型号

所有型号

型号 产品编码 数量
SK RK4 7404380
1 个
