水磨石外壳,用于标称尺寸R4 的可平整安装底盒

项目编号 7404382 | EAN码 4012196633944

产品描述

产品描述

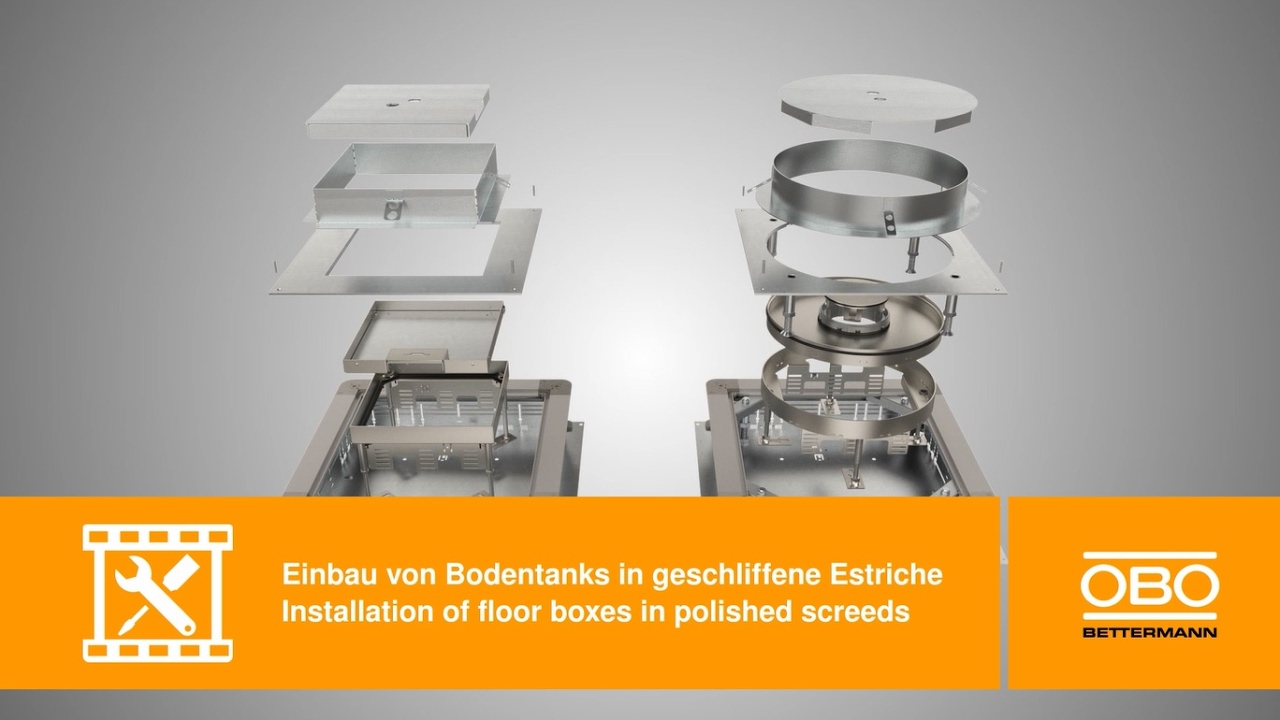

Lined body, suitable for polishing, for the direct and jointless installation of round height-adjustable cassettes, nominal size 4, into surface-finished screeds/terrazzo floorings. The casing is laid floatingly onto underfloor boxes with mounting lids of nominal size 4, closing the gaps between underfloor box and cassette frame. The protection cover made from aluminium sheet is put into the cassette frame as a dummy before the screed work is done and can be polished over with the screed or terrazzo.
技术资料

技术参数

尺寸 Ø270x55
最大地板高度 200 mm
最小地板高度 130 mm
材料
表面 带钢镀锌
设备安装单元的标称尺寸 R4

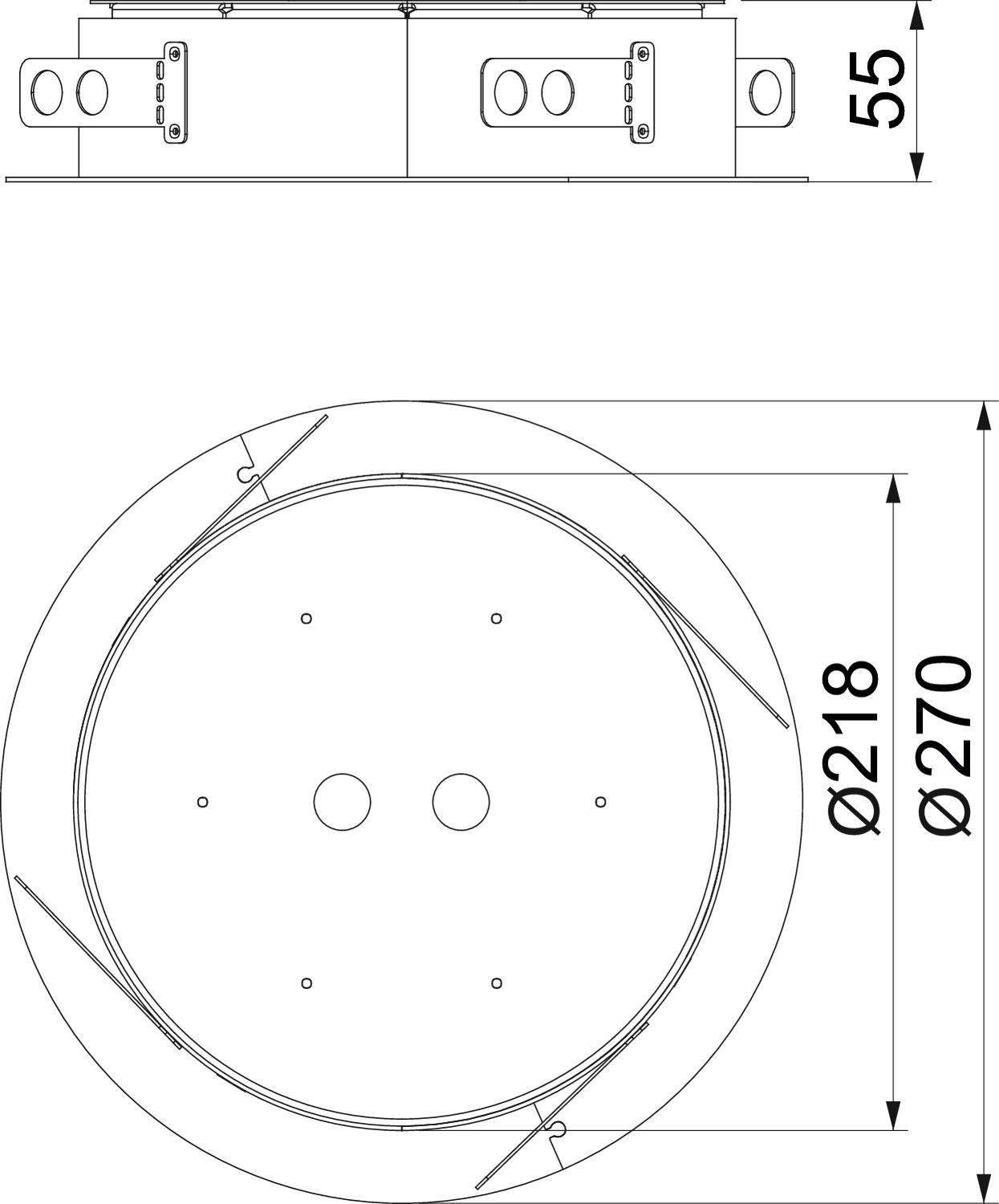

尺寸

尺寸 a 218 mm
尺寸 A 270 mm
尺寸 h 55 mm
高度 55 mm
所有型号

所有型号

型号 产品编码 数量
SK RK4R 7404382
1 个
